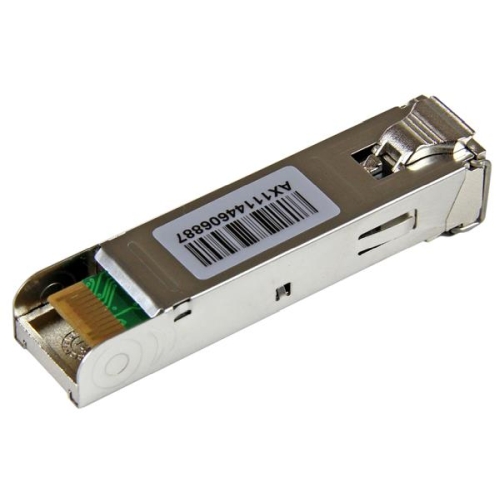

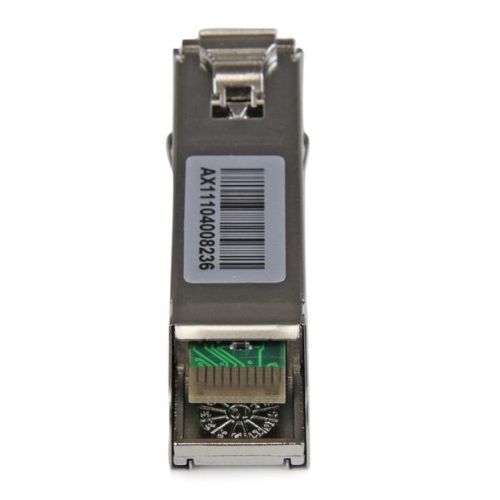

Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m

The SFPSXMM Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to increase performance and connectivity of your fiber-connected network devices.

Using a short wavelength (850nm) VCSEL laser diode, enabling a maximum cable distance of 550m (0.3 miles) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA compliant SFP port, providing a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.

Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot.

• Fully compliant with MSA standards, this hot pluggable module can be installed into any networking device with an MSA compliant port
• Equipped with an industry standard multimode LC interface, this module can extend your network connectivity up to 550m away

• 1.25Gbps IEEE 802.3z 1000BASE-SX Compliant
• Complies with SFP Multi-Source Agreements standards (MSA)
• Equipped with a 850nm VCSEL Laser with Class 1 laser safety standards IEC825 compliance

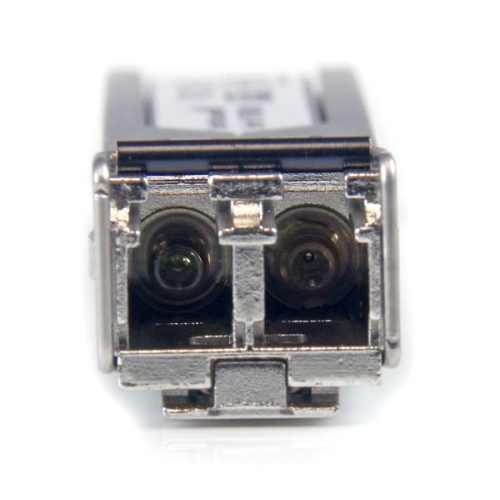

• Duplex LC receptacle connector
• Complies with 1.0625Gbps Fiber Channel FC-PI 100-M5-SN-I and FC-PI 100-M6-SN-I
• Serial ID functionality support
• Fully Hot Pluggable
