StarTech SFPG1320C Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM – 20 km (Mini-GBIC)
SKU: AA84297
Model Name: SFPG1320C
Availability:
IN STOCK
Sale Price: $154.70 inc. GST
Quantity:

Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC w/ DDM – 20 km (Mini-GBIC)

The SFPG1320C Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC - 20 km (12.4 miles) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Single-Mode LC port on your Gigabit fiber networking equipment or fiber media converter.

Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.

This 1310nm single-mode SFP module is compatible with Cisco equipment.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
  • Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
  • Equipped with an industry standard single-mode LC interface, this module can extend your network connectivity up to 20 km
Features
  • Data rates up to 1.25 Gbps
  • Supports distances up to 20 km (12.4 miles)
  • Complies with SFP Multi-Source Agreements standards (MSA)
  • Compatible with Cisco equipment

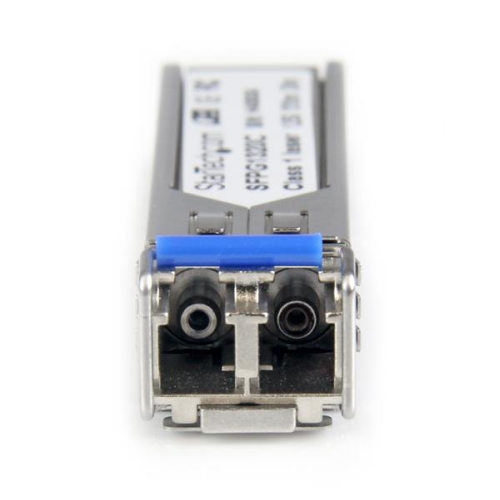

  • LC Fiber connector
  • Fully Hot Pluggable
Warranty Information
Warranty Lifetime
Hardware
Industry Standards IEEE 802.3z 1000BASE-LH
WDM No
Performance
Compatible Networks 1000 Mbps (1 Gbps)
DDM Yes
Fiber Operating Mode Half/Full-Duplex
Fiber Type Single Mode
Max Transfer Distance 20 km (12.4 mi)
Maximum Data Transfer Rate 1.25 Gbps
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or Cisco compliant SFP port
Environmental
Humidity 30~70% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Product Height 0.4 in [10 mm]
Product Length 2.4 in [60 mm]
Product Weight 0.6 oz [17 g]
Product Width 0.5 in [12 mm]
Packaging Information
Shipping (Package) Weight 1.7 oz [49 g]
What's in the Box
Included in Package 1 - 1.25 Gbps Single Mode LC SFP
