StarTech MCM1110MMLC Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
|
||||||||||||
This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

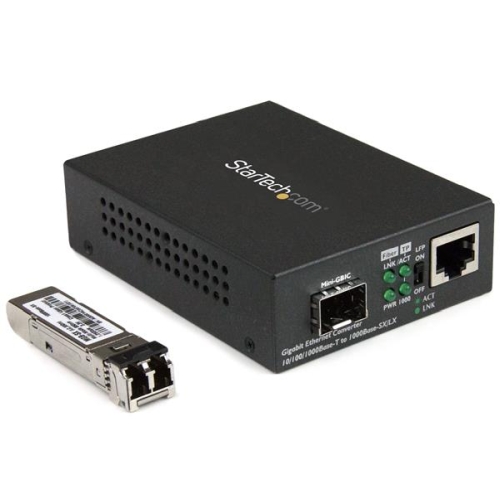

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3z 1000BASE-SX | |
| IEEE 802.3z 1000BASE-LX | |
| PoE | No |
| WDM | No |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1 Gbps |
| MTBF | > 50,000 hours at 25°C |
| Wavelength | 850nm |
| Connector(s) | |
| Local Unit Connectors | 1 - RJ-45 Female |
| 1 - Fiber Optic LC Duplex Female | |
| Indicators | |
| LED Indicators | 1 - Power |
| 1 - Fiber Port Link/Act | |
| 1 - Copper Port Link/Act | |
| 1 - 1000 Mbps | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |

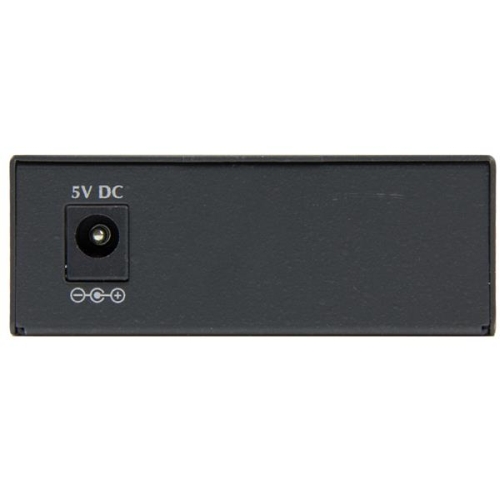

| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 5~95% RH (Non-condensing) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Physical Characteristics | |
| Color | Brown |
| Enclosure Type | Steel |
| Product Height | 1 in [26 mm] |
| Product Length | 3.7 in [94 mm] |
| Product Weight | 7.1 oz [200 g] |
| Product Width | 2.8 in [70 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 18 oz [510 g] |
| What's in the Box | |

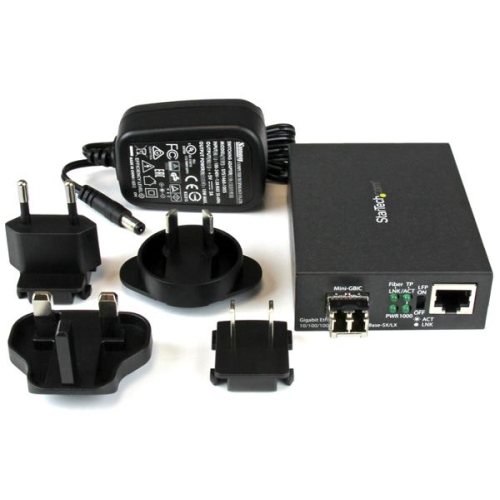

| Included in Package | 1 - Gigabit Ethernet fiber media converter - MM LC |
| 1 - universal power adapter (NA/JP, EU, UK, ANZ) | |
