StarTech NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet

SKU:	AA92428
Model Name:	NETRS2321POE
Availability:	IN STOCK
Sale Price:	$365.30 inc. GST
Quantity:

1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet

The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!

The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.

The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.

The StarTech.com Advantage

PoE support gives you the freedom to situate your serial device where it is needed even when no power outlet is available
IP-based connection to your serial devices allows remote administration from anywhere; even over the Internet
Remotely connect to multiple NETRS2321POE units with a single PC for simple and efficient management of devices from a single location

Features

Supports standard Ethernet or Power over Ethernet (POE)
Supports UDP, IP, TCP, ICMP, HTTP, DHCP and ARP-Ping protocols
Wall mountable
Integrated 10/100Mbps RJ45 LAN port
Data transfer rates of up to 115.2 Kbps per port
Supports Auto Crossover (MDI/MDI-X)
Support for Windows 2000, XP 32bit, and Vista 32bit

Warranty Information
Warranty	2 Years
Hardware
Industry Standards	IEEE 802.3af Power-over-Ethernet
Performance
Data Bits	6, 7, 8
Maximum Data Transfer Rate	115.2Kbps
MTBF	233,403 Hours
Stop Bits	1, 2
Supported Protocols	UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
Connector(s)
Connector Type(s)	1 - DB-9 (9 pin, D-Sub) Male
	1 - RJ-45 Female
Software
OS Compatibility	Windows Vista (32), XP (32), 2000
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. • United States Patent No. 5,406,260 (expired) • United States Patent No. 6,650,622 • United States Patent No. 7,457,250 • United States Patent No. 8,155,012 • United States Patent No. 8,902,760 • United States Patent No. 8,942,107 • United States Patent No. 9,019,838 • United States Patent No. 9,049,019 • United States Patent Application No. 14/695,456 • United States Patent Application No. 14/726,940
Indicators
LED Indicators	3 - Heartbeat, Link/Activity, 10/100 Mbps
Power
Center Tip Polarity	Positive
Input Current	0.3 A
Input Voltage	110V-240V AC
Output Current	0.1A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	1.2
Power Source	AC Adapter Included
Environmental
Humidity	5~95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color	Black
Enclosure Type	Aluminum
Product Height	1 in [25.4 mm]
Product Length	4.2 in [107 mm]
Product Weight	16.9 oz [480 g]
Product Width	2.6 in [66.3 mm]
Packaging Information
Shipping (Package) Weight	1.9 lb [0.9 kg]

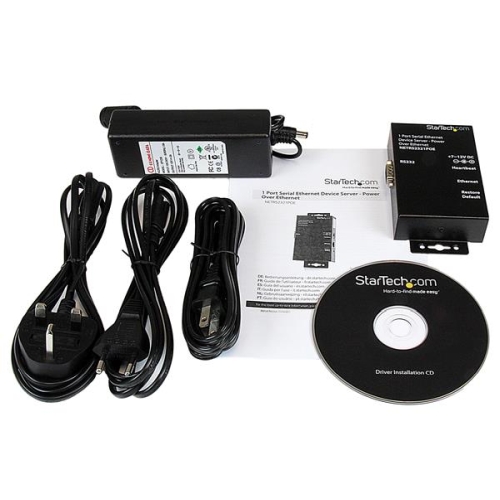

What's in the Box
Included in Package	1 - Industrial Serial over IP Device Server
	1 - Power Adapter
	1 - Driver CD
	1 - Instruction Manual
