TP-Link TL-POE10R PoE Splitter, IEEE 802.3af, up to 100m
SKU: WNT0125
Model Name: TL-POE10R
Availability:
IN STOCK
Sale Price: $24.80 inc. GST
Quantity:

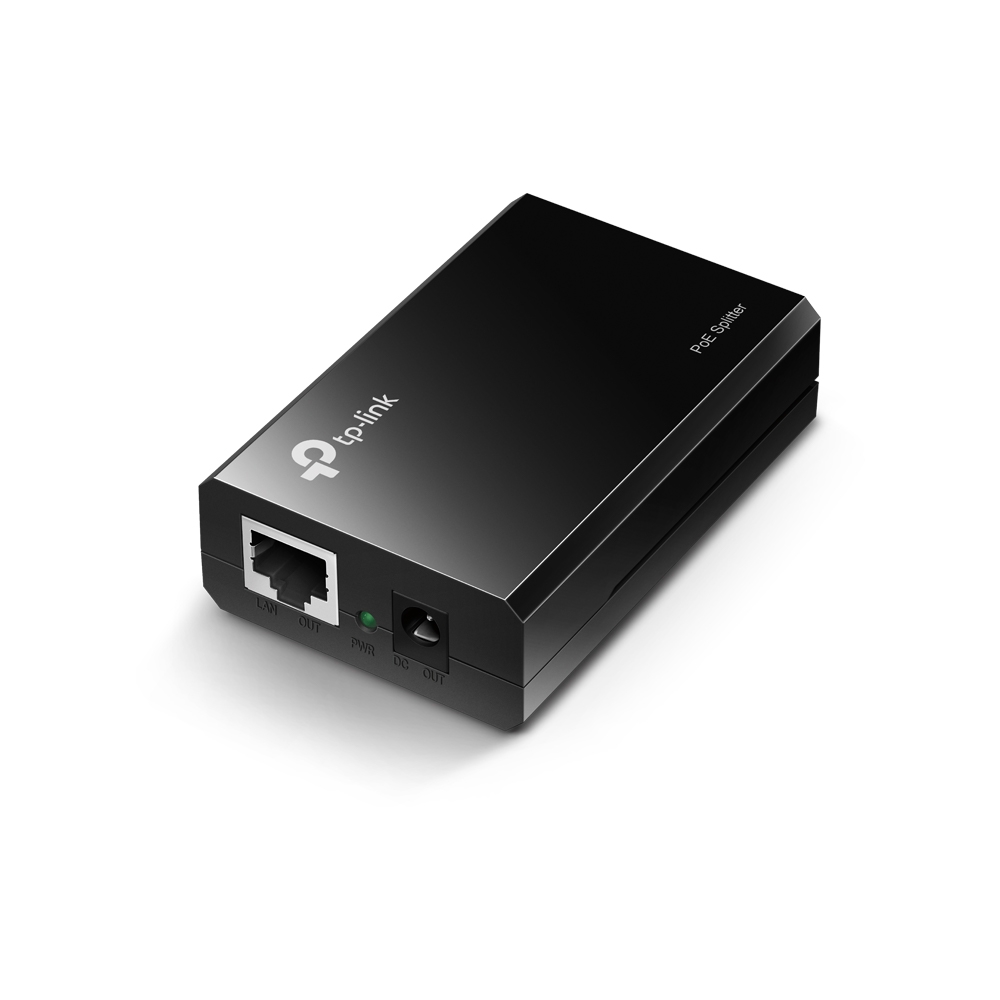

PoE Splitter TL-POE10R

Highlights
  • IEEE 802.3af compliant
  • Selectable power output
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
Technical Specifications:
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters

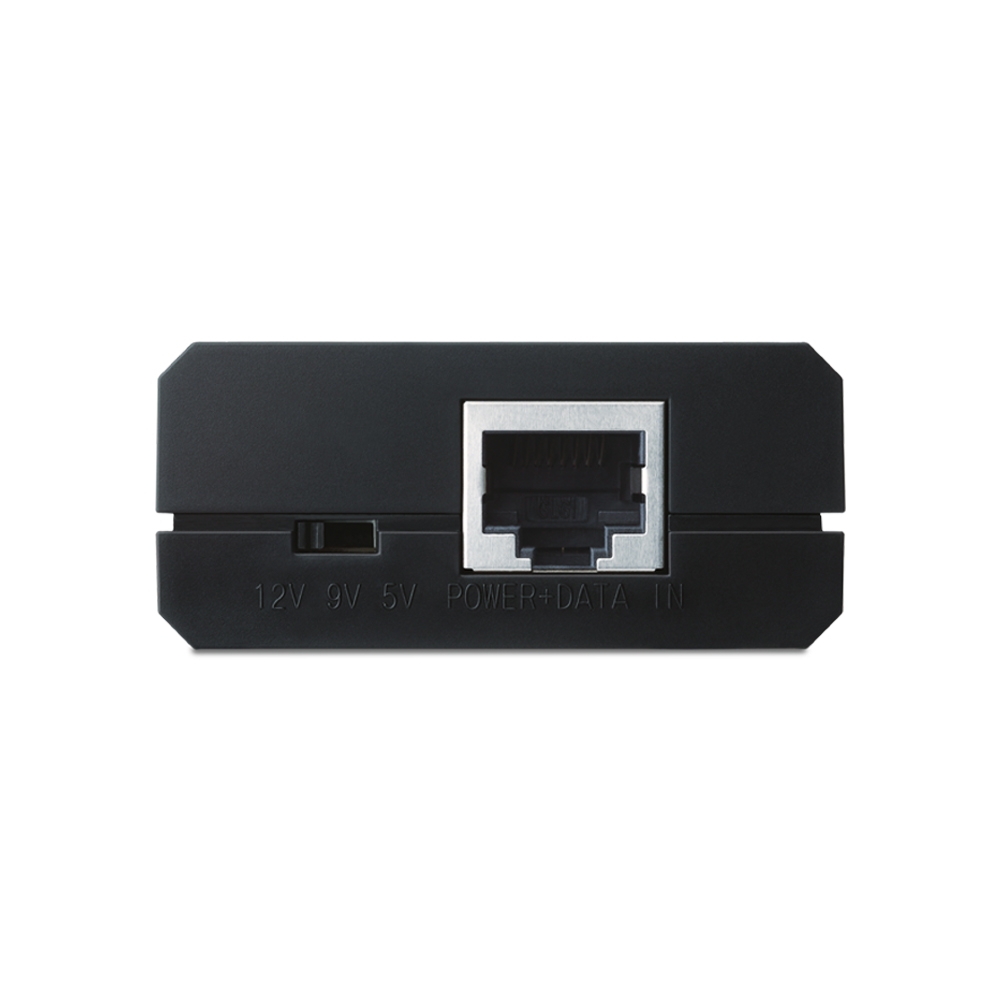

Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)

SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply

OTHERS
Certification FCC, CE, RoHS

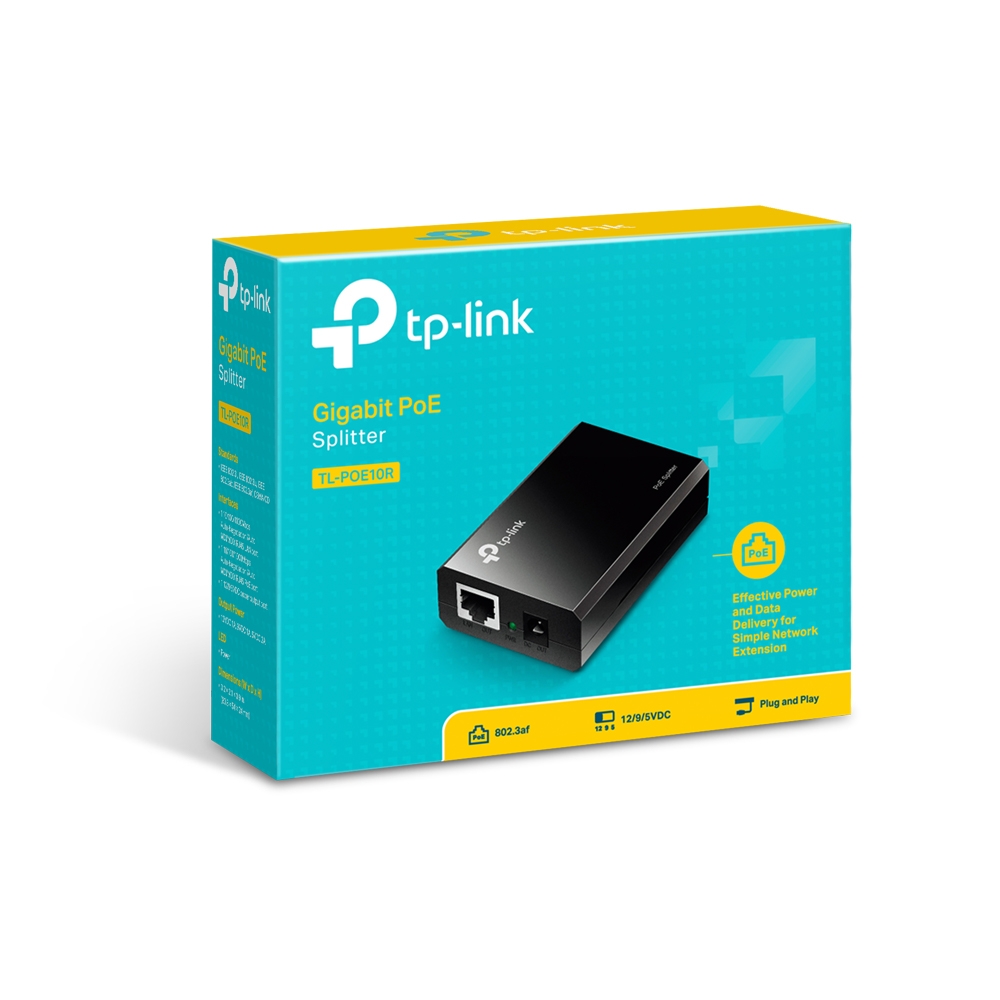

Package Contents PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
For further information on our warranty policy please visit TP-Link Australia website.
