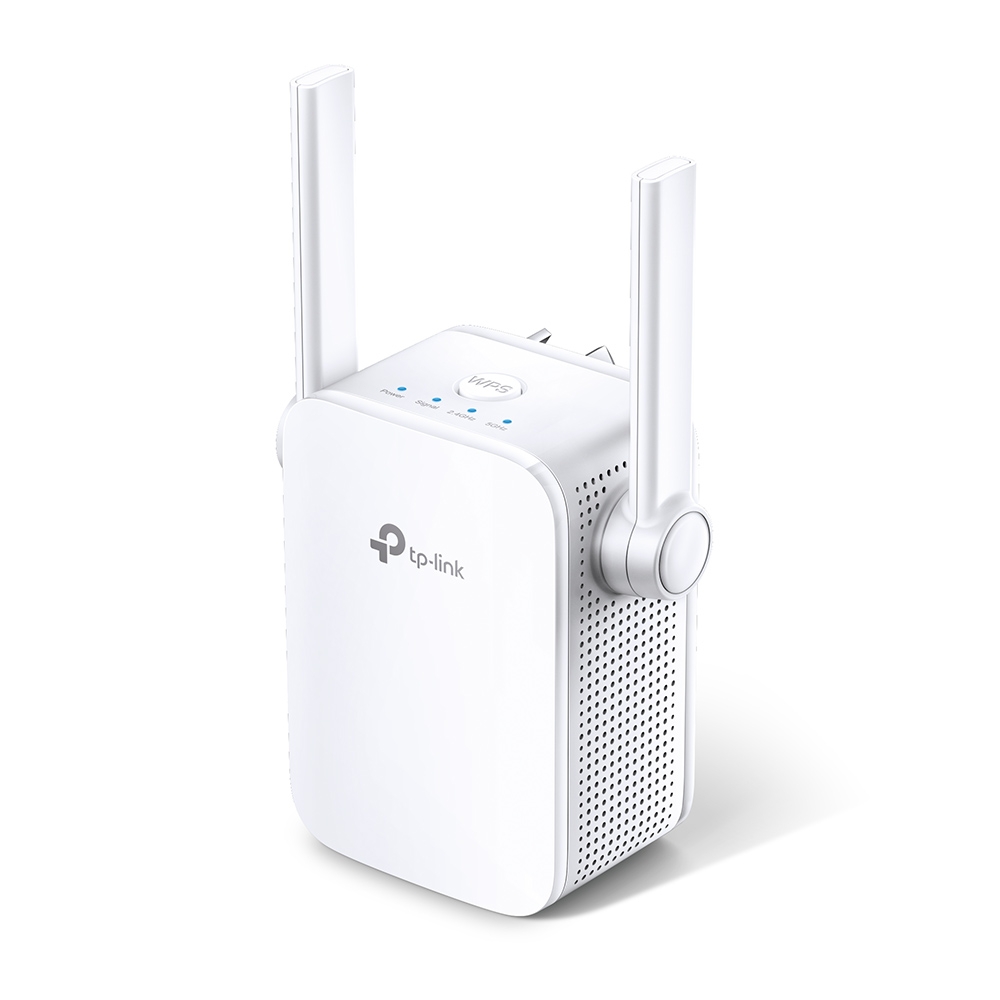

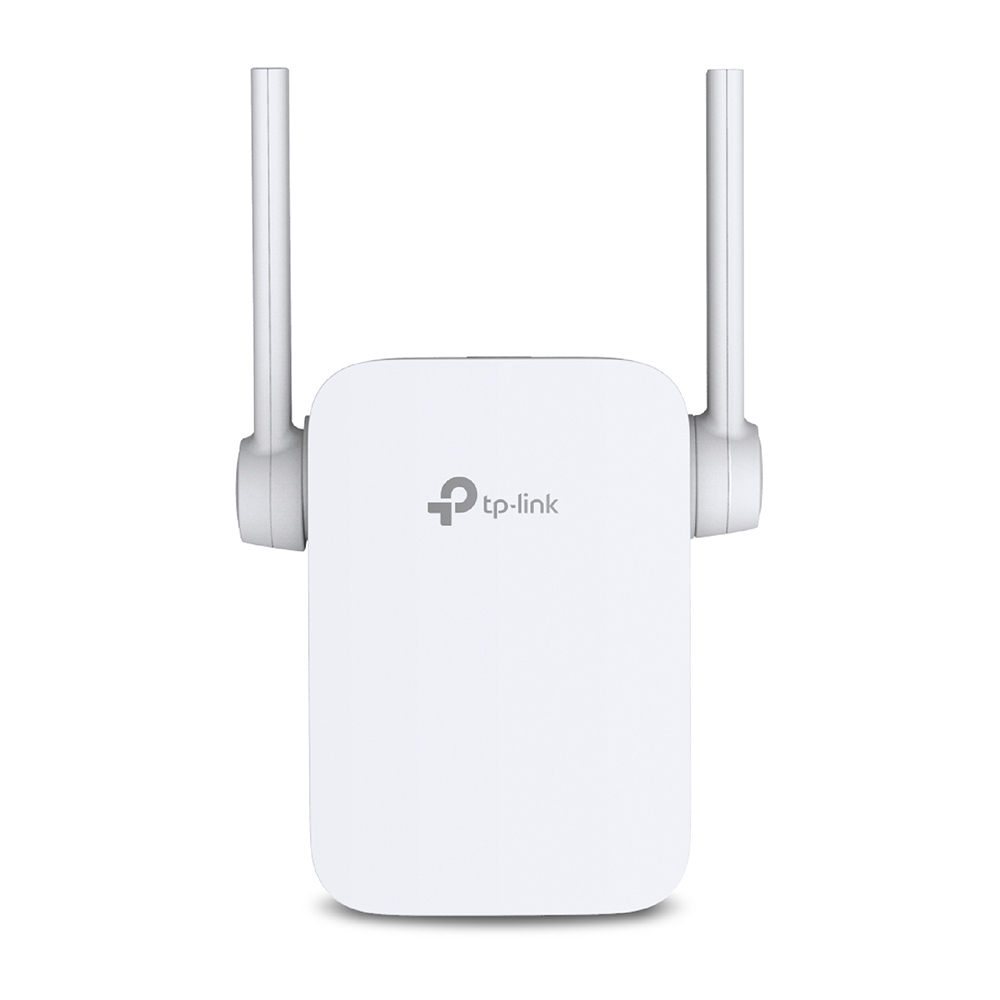

TP-Link RE205 AC750 Wi-Fi Range Extender
SKU: WNT0448
Model Name: RE205
Availability:
IN STOCK
Sale Price: $79.00 inc. GST
Quantity:

AC750 Wi-Fi Range Extender
RE205

Highlights
  • Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps
  • Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience
  • Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
  • Works with any Wi-Fi router or wireless access point
Technical Specifications:
HARDWARE FEATURES
Plug Type AU
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface 1 x 10/100M Ethernet Port (RJ45)
Button WPS Button, Reset Button
Power Consumption 7.3W(max power consumption)
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 x external

WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER

2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER


Wireless Modes Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <19.5dBm(2.4GHz)
<19.5dBm(5GHz)


OTHERS
Certification CE, FCC, RoHS

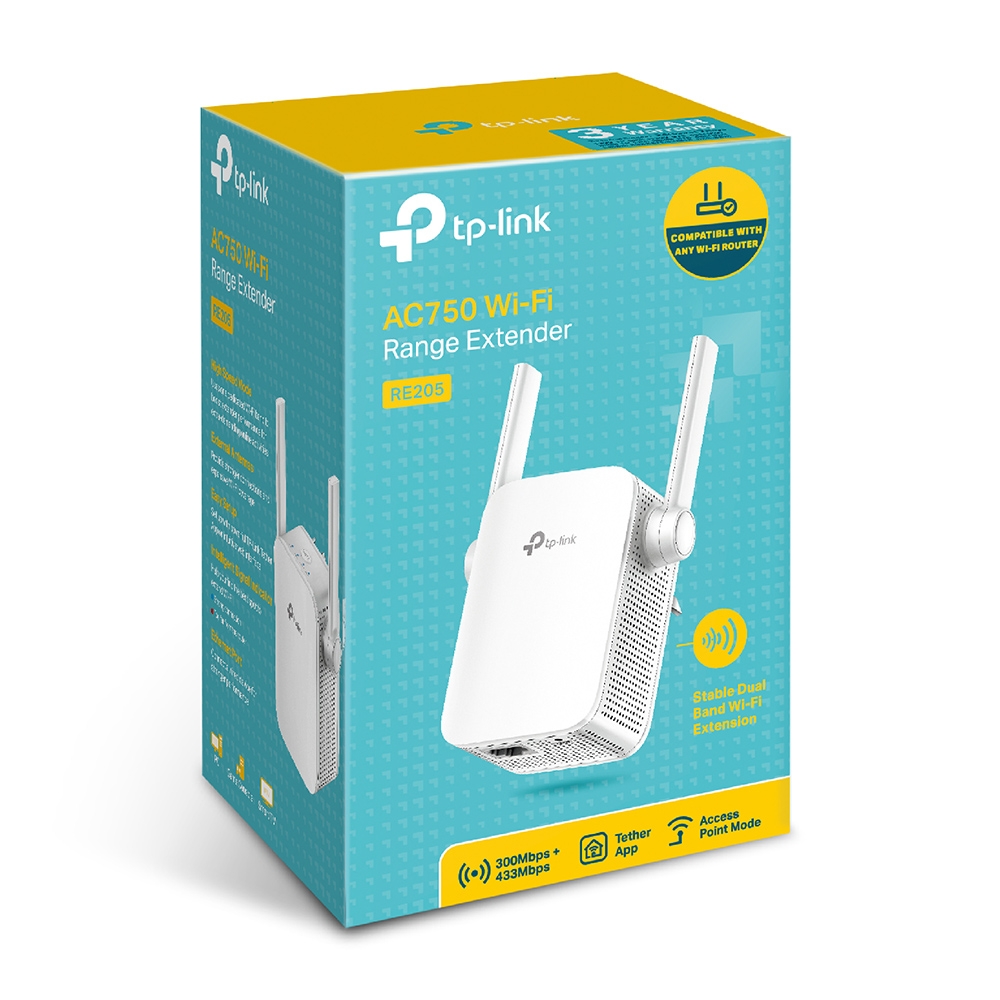

Package Contents AC750 Wi-Fi Range Extender RE205
Quick Installation Guide
Box Dimensions (W X D X H) 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
