2×2 MIMO MAXtream TDMA
- 23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
- With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Stable Structural Design and Flexible Installation

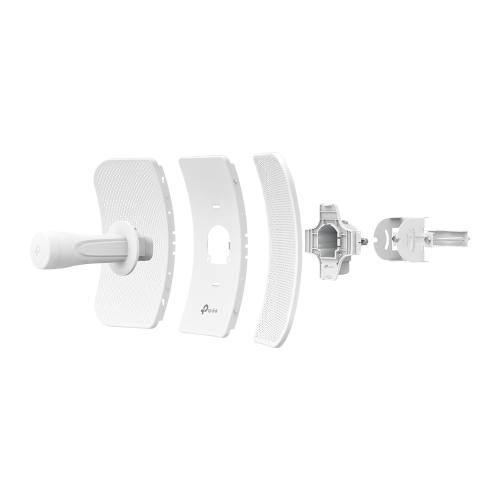

- Snap-lock parts make assembly simple and convenient

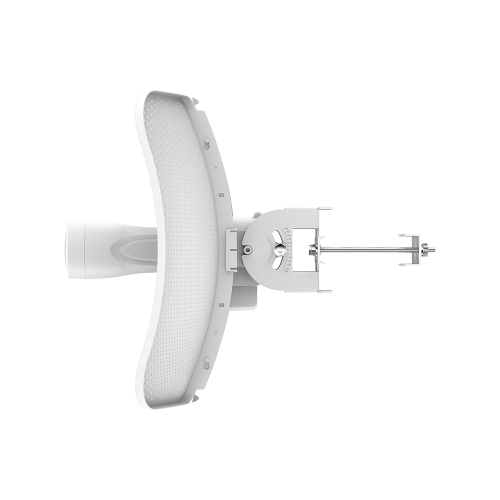

- Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
- Sturdy design ensures stability in windy conditions
Compact and Lightweight Packaging
- Small and lightweight boxes
- benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
- CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device iscovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.
Features
- Up to 300Mbps on 5GHz wireless data rates
- 23 dBi high-gain directional Cassegrain antenna incorporating 2x2 MIMO technology and a dedicated metal reflector, ideal for long-distance applications
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make assembly simple and convenient
- Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
- Sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE supports to allow flexible deployment and convenient installation
- Small and lightweight boxes benefit shipping, logistics and retail
Specifications
HARDWARE FEATURES
- Processor:Qualcomm 560MHz CPU, MIPS 74Kc
- Memory:64MB DDR2 RAM,8MB Flash
- Interface:
- 1 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button
- Power Supply:
- Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
- Dimensions:360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
- Antenna Gain: 23dBi
- Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
- Protection:
- 15KV ESD Protection
- 6KV Lightning Protection
- Enclosure:
- Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
- Wireless Standards:IEEE 802.11a/n
- Proprietary Protocol:TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds:
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
- Frequency 5.15~5.85GHz
- Transmit Power: Max. 29dBm/790mW (Adjustable power by 1dBm)
SOFTWARE FEATURES
- Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
- Network Configuration:
- WAN: Static/Dynamic/PPPoE/L2TP/PPTP
- LAN: Static/Dynamic/DHCP
- Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
- Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
- Wireless Configurations:
- Pharos MAXtream TDMA Technology
- Selectable Channel Width: 5/10/20/40MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
- 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Management:
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
- System Tools:
- Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- System-level Optimizations:
- Optimized IGMP Snooping/Proxy for multicast applications
- Hardware watch dog
OTHERS
- Certification CE, FCC, RoHS, IP65
- Package Contents
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
- System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
- Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
- Environment
- Operating Temperature: -40C~70C (-40F~158F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
