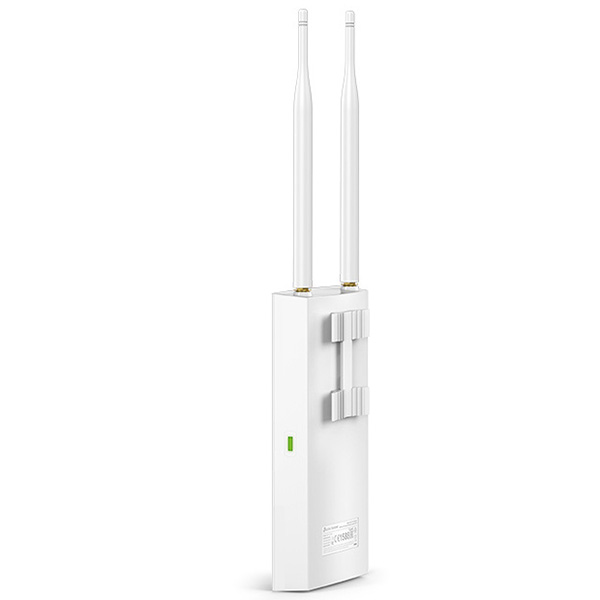

TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point

300Mbps Wireless N Outdoor Access Point

EAP110-Outdoor

Highlights

Built for outdoor Wi-Fi applications
Up to 300Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable, weatherproof enclosure to withstand fair and foul weather
Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication

Technical Specifications:

HARDWARE FEATURES

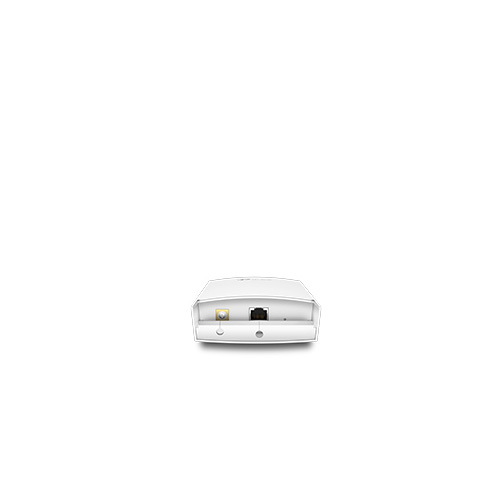

Interface	Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Button	Reset
Power Supply	24VDC / 0.6A Passive PoE Supply
Power Consumption	6.3 W
Dimensions ( W x D x H )	8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type	2*5dBi External Omni waterproof
Mounting	Pole / Wall Mounting (Kits included)
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n/g/b
Frequency	2.4GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Transmit Power	CE: <20dBm FCC: <27dBm
Wireless Functions	Multiple SSIDs(Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
Auranet Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Yes
Telnet	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes

OTHERS
Certification	CE, FCC, RoHS

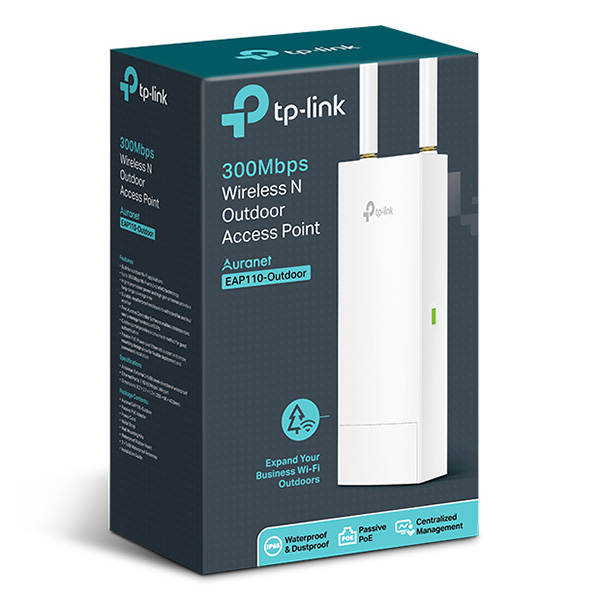

Package Contents	300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: -30?~65? (-22?~149?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
