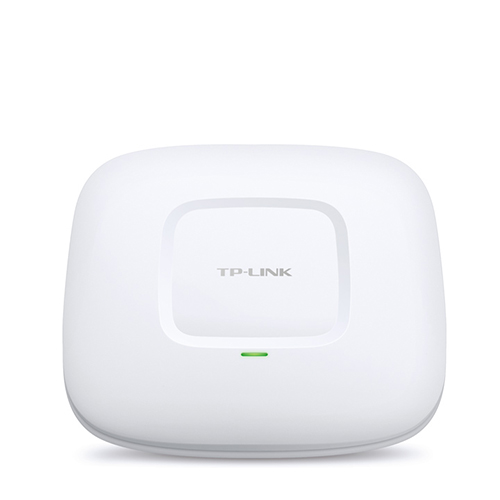

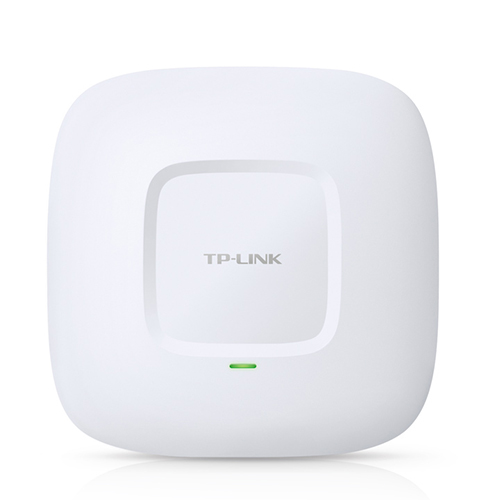

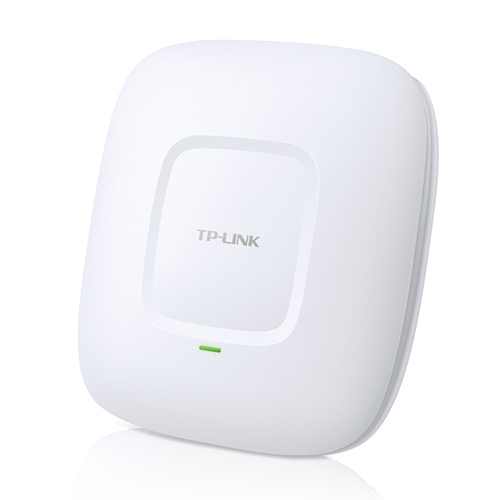

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
SKU: WNT0293
Model Name: EAP225
Availability:
IN STOCK
Sale Price: $124.90 inc. GST
Quantity:

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

EAP225

Highlights
  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • Free cloud centralized management and Omada app for ultra convenience and easy management
  • Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Technical Specifications:
HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption EU: 10.5 W
US: 12.6W
Dimensions 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni *
2.4GHz: 4dBi
5GHz: 5dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Yes
Hardware Watch Dog Yes

WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps *
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO *
Airtime Fairness *
Beamforming *
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE:
≤20dBm(2.4GHz,EIRP)
≤23dBm(5GHz,EIRP)
FCC:
≤24dBm(2.4GHz)
≤22dBm(5GHz)

MANAGEMENT
Omada Cloud Access Yes
Omada App Yes
Omada Cloud Controller Yes
Omada Controller Software Yes
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes

OTHERS
Certification CE, FCC, RoHS
Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0?~60? (32?~144?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
