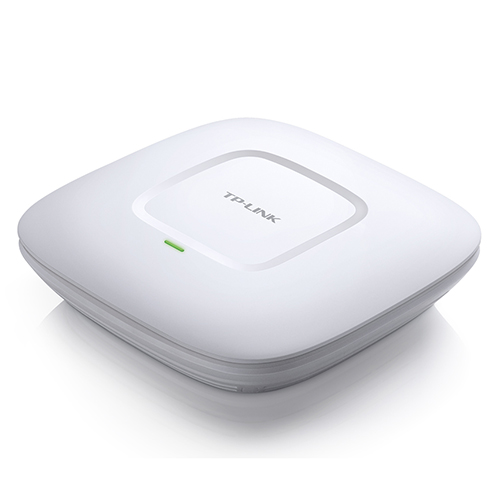

TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point
SKU: WNT0282
Model Name: EAP110
Availability:
IN STOCK
Sale Price: $63.80 inc. GST
Quantity:

300Mbps Wireless N Ceiling Mount Access Point

EAP110

Highlights
  • EAP Controller Software enables administrators to easily manage hundreds of EAPs
  • Supports passive PoE for convenient installation up to 100meters
  • Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Multi-SSID divides multiple wireless networks for different users
  • Enterprise class Wi-Fi security help to decrease network security threats
Technical Specifications:
HARDWARE FEATURES

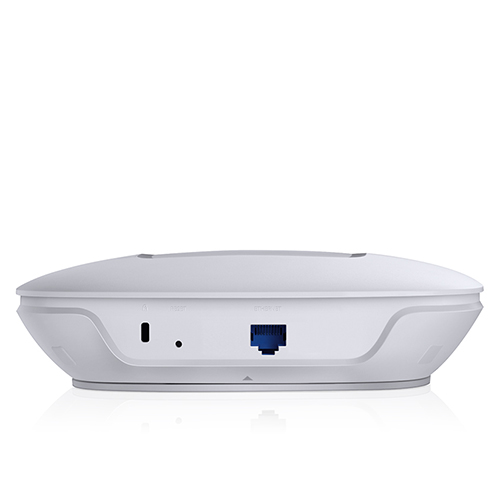

Interface Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Button Reset
Power Supply 24VDC / 1A Passive PoE Supply
Power Consumption 7.7W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes

WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm
FCC:
<26dBm

MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS

OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Resource CD
Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
