StarTech IES101GP2SFW Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots
SKU: PJ11812
Model Name: IES101GP2SFW
Availability:
IN STOCK
Sale Price: $1149.90 inc. GST
Quantity:

Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management

  • POWER OVER ETHERNET: Industrial 8 Port Gigabit PoE+ Switch w/2 SFP Ports; 30W per 4 PoE ports to IEEE 802.3af & IEEE 802.3at for cameras, sensors etc. w/Cat5e or higher cable Total power budget 200W
  • FLAT DESIGN: Compact housing allows for front access and easy installation and troubleshooting; DIN rail or wall mounting options available as all hardware is included
  • FULL LAYER 2 MANAGEMENT CAPABILITIES: Through built in web-based GUI/Telnet/SSH; Switch can be managed to configure features like Ports/VLAN/Link Aggregation/SNMP/QoS/Spanning Tree among others
  • TECH SPECS: 8 + 2 port Gigabit switch | 8 x RJ45 | 2 x Open SFP slot (MSA Compliant) | 48-56VDC pwr input | 10/100/1000 Mbps network auto | Redundant pwr inputs w/terminal block kit or incl AC adapter
  • ROBUST DESIGN: Steel housing with IP-30/vibration/shock/free fall ratings and 6kV ESD; Operating temperature range of -40C to 75C w/ MTBF of 500,000+ hrs using MIL-HDBK-217F @ 25C; RJ45 dust caps incl

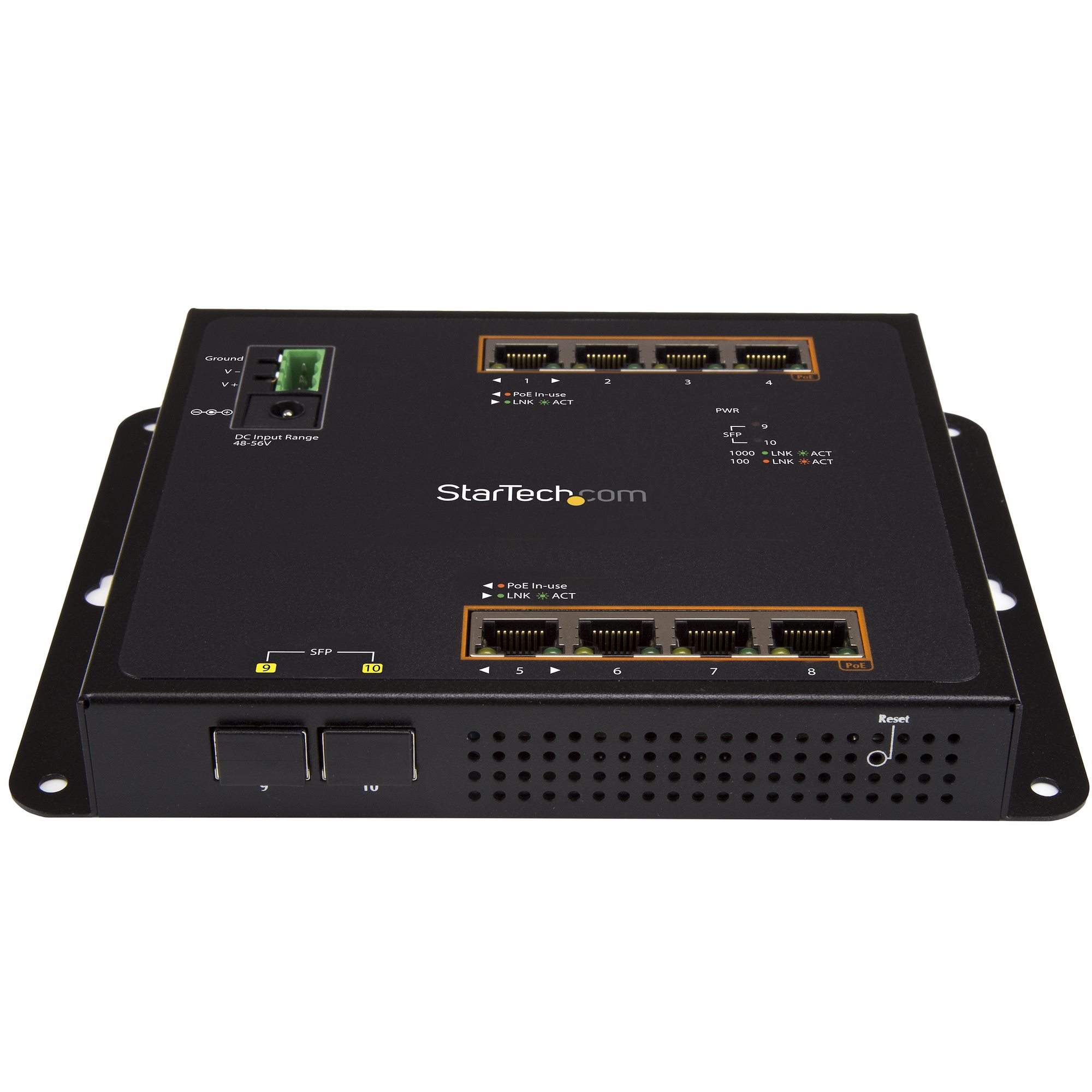

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.

Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device.  The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.

Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).

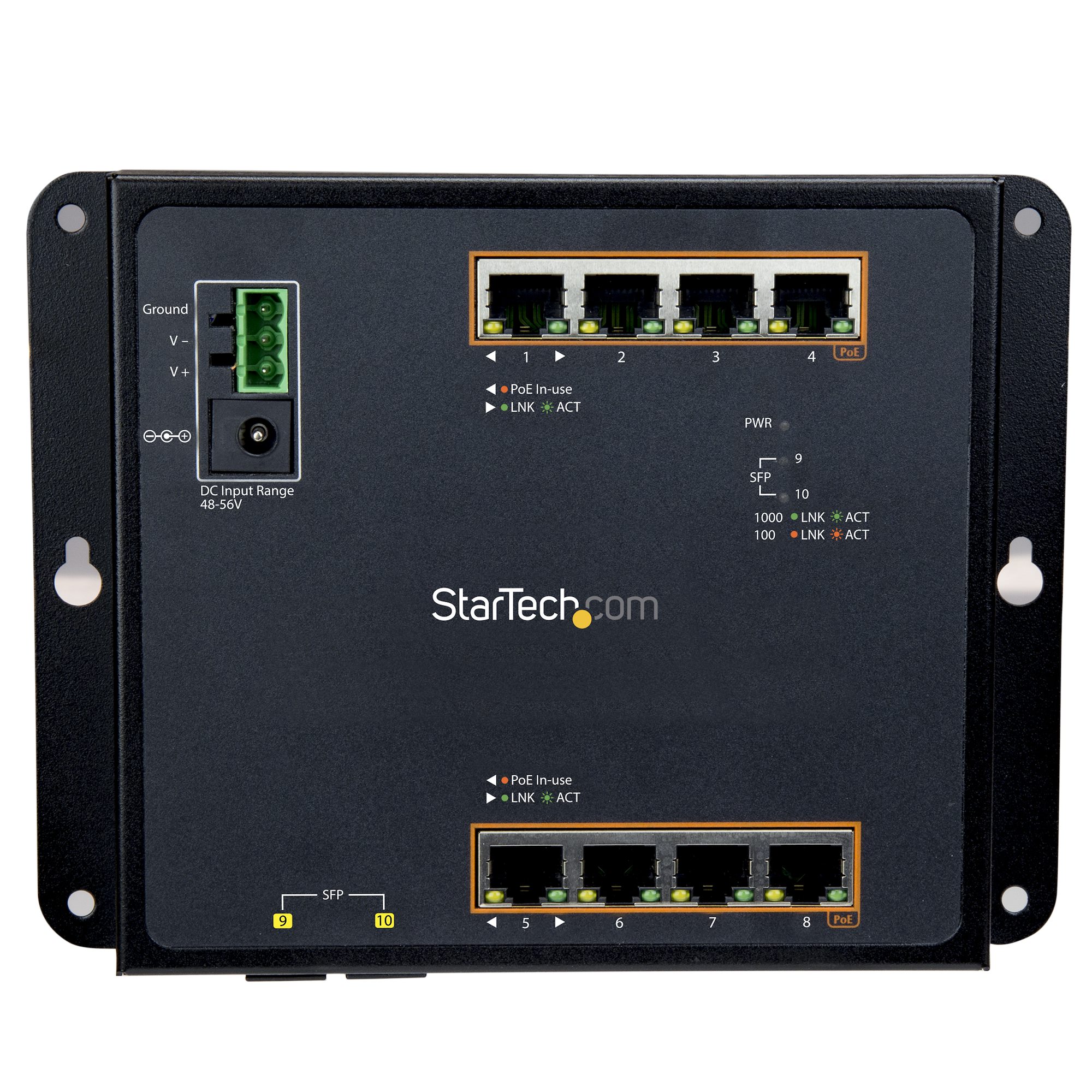

Wall-mountable with front access
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.

Efficient Layer 2 management
The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.

Rugged IP30 industrial design
This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.

Reliable connection for seamless network performance
With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Install in a server rack or cabinet, or wall mount in a convenient location
  • An ideal solution for many network applications including IP surveillance, wireless LAN, building/home automation network and Internet of things (IoT)
  • Add small workgroups to expand your existing network in a business or home office
  • Works well in industrial, non-climate controlled environments, such as warehouses



Warranty Information

  • Warranty: 2 Years

Connector(s)

  • 8 - RJ-45 (PoE+)
  • 2 - SFP Slot
  • 1 - Terminal Block (3 Wire)

Environmental

  • Operating Temperature: -40°C to 75°C (-40°F to 167°F)
  • Storage Temperature: -40°C to 90°C (-40°F to 194°F)
  • Humidity: 5~95% RH (Non-Condensing)

Hardware

  • Ports: 10
  • Interface: RJ45 (Gigabit Ethernet), Fiber Ethernet
  • Industry Standards:
    • IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000Base-SX/LX
    • IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol

LED Indicators

  • 1 - Power
  • 8 - PoE Active (yellow)
  • Link/Activity (green)
  • 2 - 100Mbps Link/Activity (yellow)
  • 1000Mbps Link/Activity (green)

Packaging Information

  • Shipping (Package) Weight: 2.1 lb [0.9 kg]
  • Package Length: 11.8 in [30 cm]
  • Package Width: 6.7 in [17 cm]
  • Package Height: 3.5 in [90 mm]

Performance

  • Maximum Data Transfer Rate: 2 Gbps (Full-Duplex)
  • Maximum Cable Length: 328.0 ft [100 m]
  • Buffer Size: 512 KB
  • Flow Control: IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex
  • Surge Protection: 6kV ESD, 6kV EFT
  • Compatible Networks: 10/100/1000 Mbps
  • Auto MDIX: Yes
  • Full Duplex Support: Yes
  • Jumbo Frame Support: 9K max.
  • Switching Architecture: Store-and-Forward
  • MTBF: > 100,000 hrs @ 25 degrees C
  • Supported Protocols: IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP

Physical Characteristics

  • Color: Black
  • Material: Steel
  • Product Length: 5.3 in [13.4 cm]
  • Product Width: 7.0 in [17.8 cm]
  • Product Height: 1.0 in [2.5 cm]
  • Weight of Product: 21.8 oz [618 g]

Power

  • Power Source: Terminal Block
  • Input Voltage: 48 ~ 56V DC
  • Input Current: 1A minimum
  • Plug Type: M

Special Notes / Requirements

  • Patents and Licenses, The following patents are licensed for this product. This list might not be all inclusive.
    • United States Patent No. 5,406,260 (expired)
    • United States Patent No. 6,650,622
    • United States Patent No. 7,457,250
    • United States Patent No. 8,155,012
    • United States Patent No. 8,902,760
    • United States Patent No. 8,942,107
    • United States Patent No. 9,019,838
    • United States Patent No. 9,049,019
    • United States Patent Application No. 14/695,456
    • United States Patent Application No. 14/726,940
  • Note:
    • 8 ports support IEEE 802.3at Power over Ethernet Plus (PoE+) and IEEE 802.3af Power over Ethernet (PoE)
    • Supports PoE Powered Device alive check, scheduled power recycling, and time-based PoE schedule
    • PoE power up to 30W per PoE+ port (200W budget) and remote PoE power control
    • A power adapter is not included with this switch.

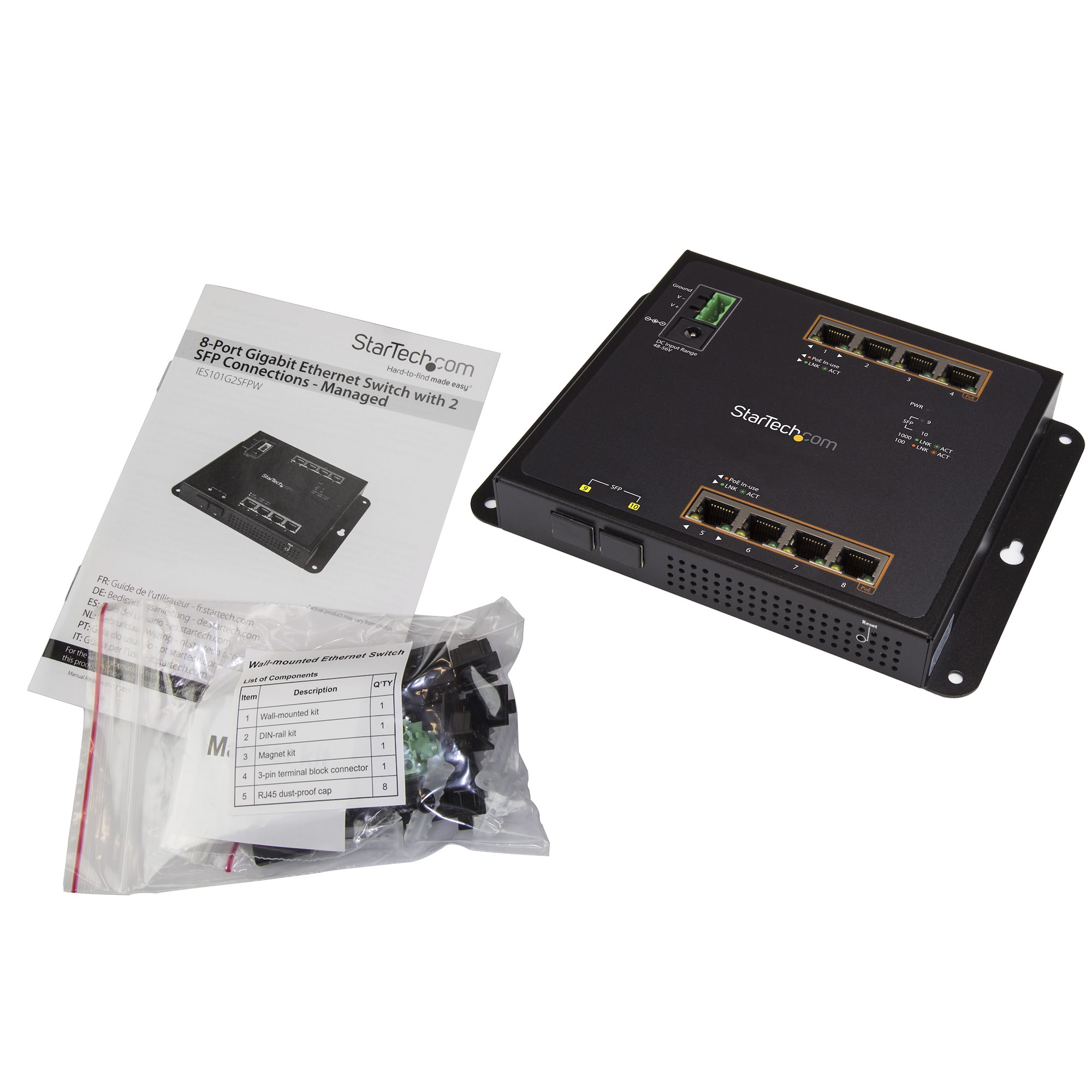

What's in the Box

  • 1 - network switch
  • 1 - terminal block connector
  • 4 - screw anchors
  • 4 - screws
  • 4 - attaching pins
  • 4 - locking pins
  • 4 - washers
  • 4 - magnets
  • 1 - DIN rail
  • 3 - DIN-rail screws
  • 8 - RJ45 dust caps
  • 2 - SFP dust caps
  • 1 - quick-start guide
