TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch
SKU: WNT0433
Model Name: TL-SG116E
Availability:
IN STOCK
Sale Price: $126.40 inc. GST
Quantity:

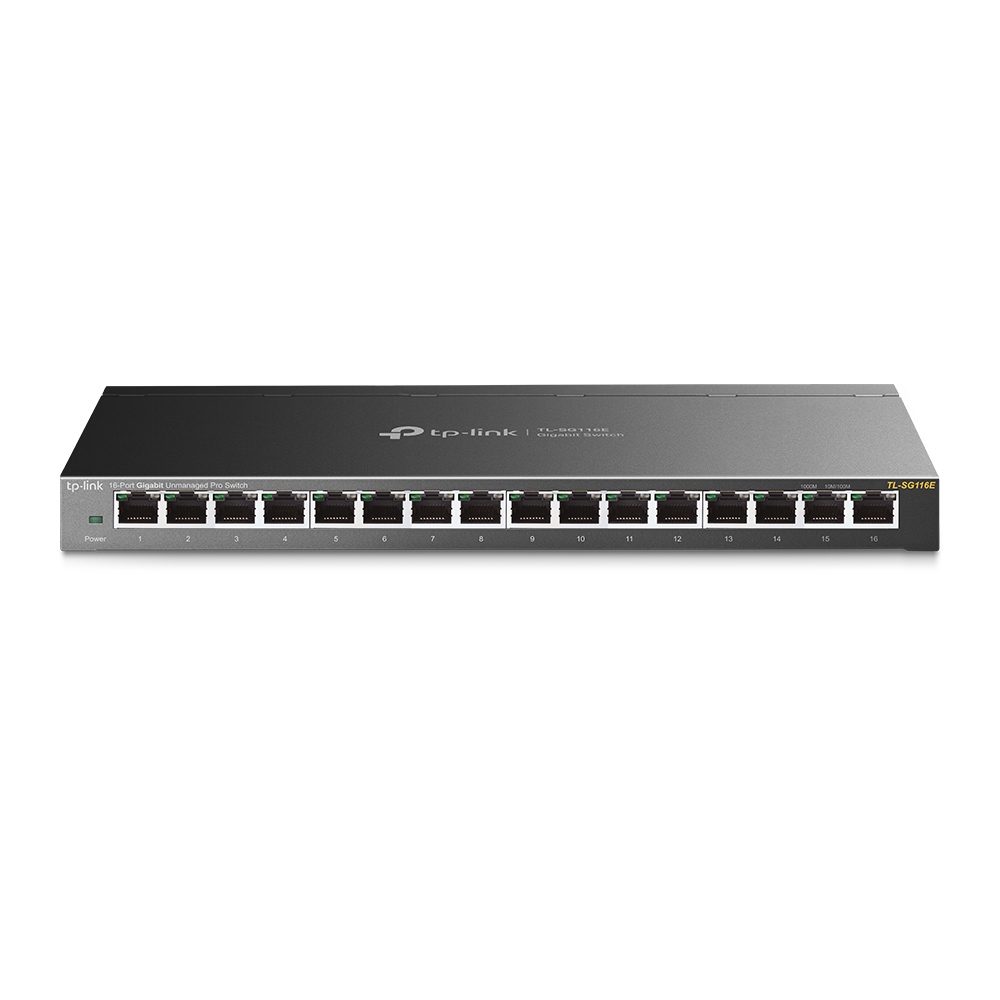

16-Port Gigabit Unmanaged Pro Switch TL-SG116E

Highlights
  • 16 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption
Overview
What This Product Does

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.

Easy to Use

Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.

Durable Metal Casing

The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Additional Software Features

TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.

Go Green with Your Ethernet

TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Technical Specifications:
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 9.27W (220V/50Hz)
Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB

SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG116E
Power Cord
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
