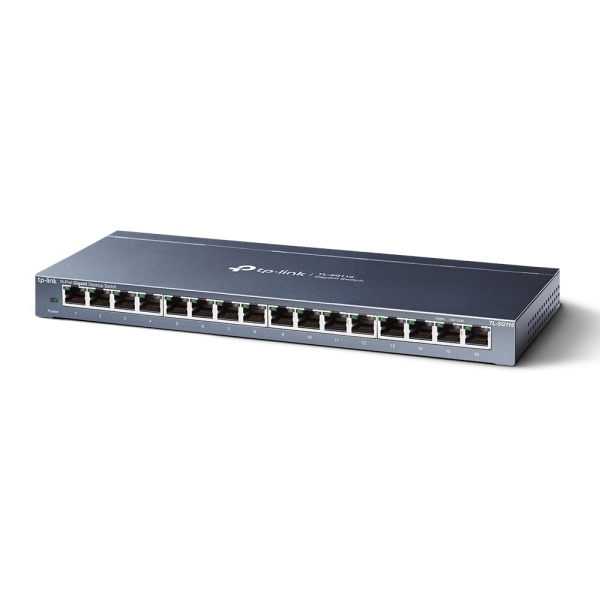

TP-Link TL-SG116 16-Port Gigabit Desktop Switch
|
The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p |
Interface | 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |
Power Consumption | Maximum: 10.0W |
External Power Supply | External Power Adapter (Output: 12VDC / 1.0A) |
LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
Dimensions ( W x D x H ) | 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm) |
PERFORMANCE | |
---|---|
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mb |
Jumbo Frame | 10KB |
SOFTWARE FEATURES | |
---|---|
Advanced Features | Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
Transfer Method | Store and Forward |
OTHERS | |
---|---|
Certification | CE, FCC ,RoHS |

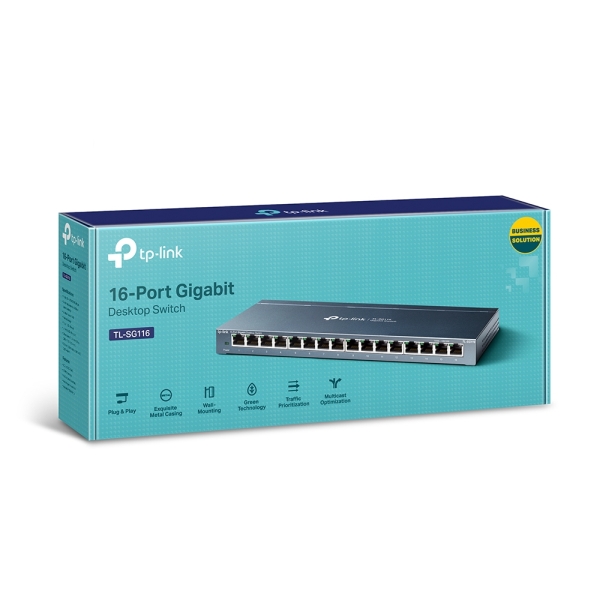

Package Contents | 16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
