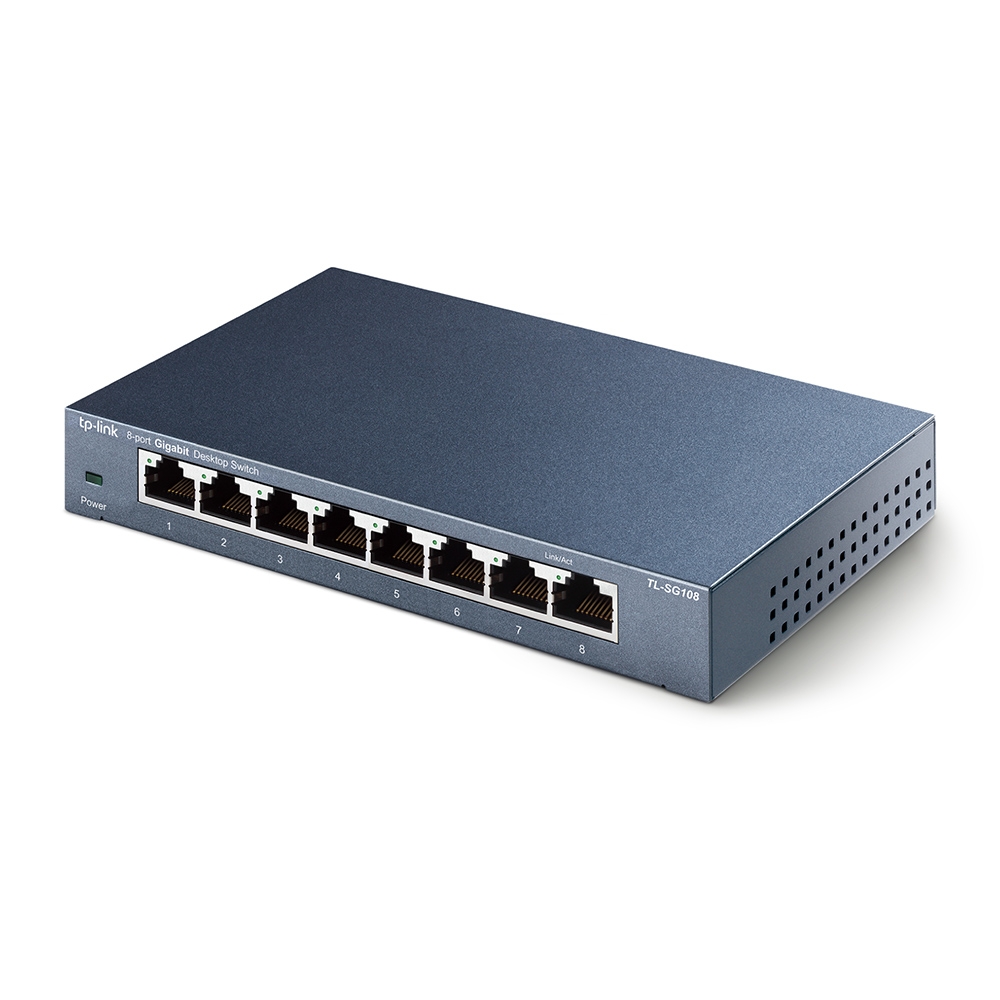

TP-Link TL-SG108 8-Port 10/100/1000Mbps Desktop Switch

SKU:	WNT0147
Model Name:	TL-SG108
Availability:	IN STOCK
Sale Price:	$53.40 inc. GST
Quantity:

8-Port 10/100/1000Mbps Desktop Switch TL-SG108

Highlights

8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves the power up to 82%
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, no configuration needed

Overview

What This Product Does

The TP-Link 8-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 8-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Technical Specifications:

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p
Interface	8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 9VDC / 0.6A)
Buffer Size	1.5Mb
LED Indicator	System Power Link, Speed and activity indicators per port built into each RJ-45 port
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Max Power Consumption	3.31W(220V/50Hz)
Max Heat Dissipation	11.29BTU/h

PERFORMANCE
Packet Forwarding Rate	11.9Mpps
MAC Address Table	4K
Packet Buffer Memory	1.5Mb
Jumbo Frame	16KB

SOFTWARE FEATURES
Advanced Features	Green Technology, saving power up to 82% 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC ,RoHS
Package Contents	8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C(-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	Limited 3-Year Warranty For further information on our warranty policy please visit TP-Link Australia website.
