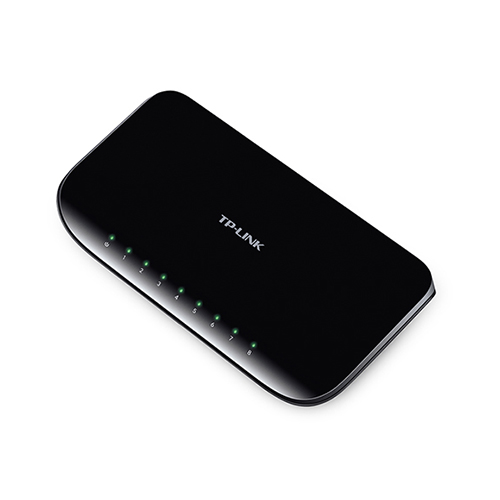

TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch
|
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |

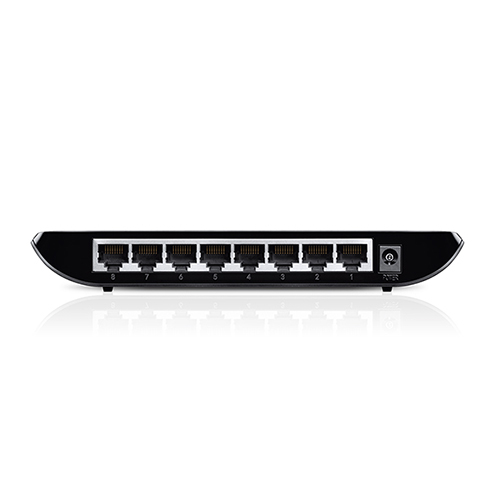

Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
Power Consumption | Maximum: 4.63W (220V/50Hz) |
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
Jumbo Frame | 15 KB |
Switching Capacity | 16 Gbps |
Dimensions ( W x D x H ) | 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
SOFTWARE FEATURES | |
---|---|
Transfer Method | Store and Forward |
MAC Address Table | 4K |
Advanced Functions | Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure |
OTHERS | |
---|---|
Certification | FCC, CE, RoHs |
Package Contents | 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide |
System Requirements | |
Environment | Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
