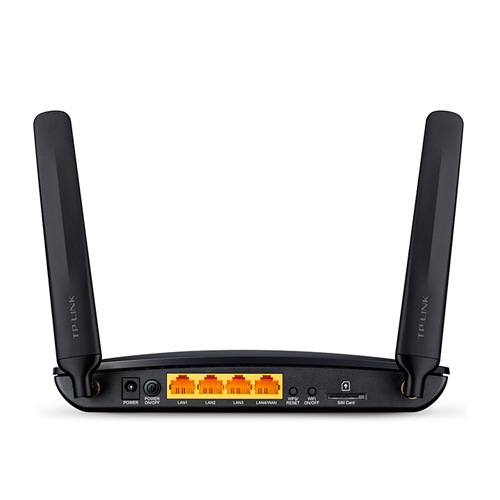

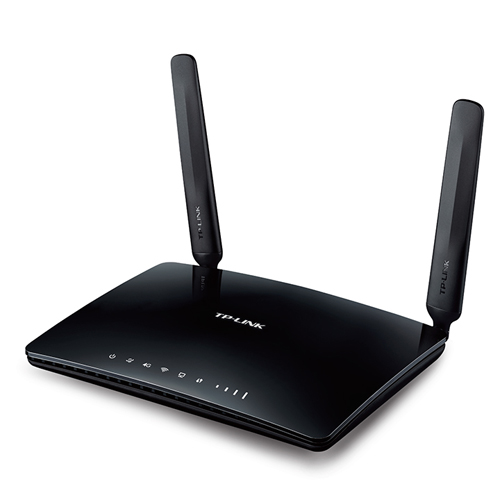

TP-Link TL-MR6400 300Mbps Wireless N 4G LTE Router
|
||||||||||||
Take full advantage of your cutting-edge 4G LTE network with the TL-MR6400, which can achieve download speeds of up to 150Mbps. The TL-MR6400 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
The 4G LTE router provides the 300Mbps Wi-Fi connections that you need for online gaming, HD streaming video, ultra-fast downloads. The integrated antennas allow you to enjoy stable wireless connections and excellent wireless coverage.
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn the router on. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
The TL-MR6400 offers unmatched convenience and versatility. It provides the perfect solution in any situation, from relaxing at home to working in a remote location, just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the TL-MR6400 has you covered.
With the inclusion of the WAN/LAN port, the TL-MR6400 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
| HARDWARE FEATURES | |
|---|---|
| Interfaces | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Dimensions (W X D X H) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| External Power Supply | 12V/1A |
| Antenna Type | 2 Internal Wi-Fi Antennas, 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Transmit Power | CE: <20dBm(2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz) TDD-LTE (2300/2600MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz) 2G: EDGE/GPRS/GSM (850/900/1800/1900MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Traffic Control(IP QoS) |
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1 |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

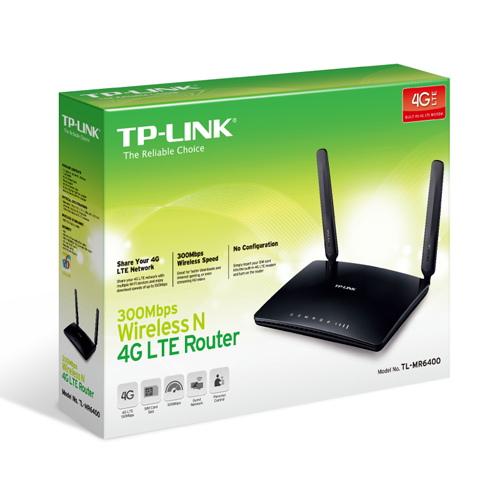

| Package Contents | 300Mbps Wireless N 4G LTE Router, TL-MR6400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide Micro to Standard SIM Card Adapter Nano to Standard SIM Card Adapter |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers SIM Card |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
