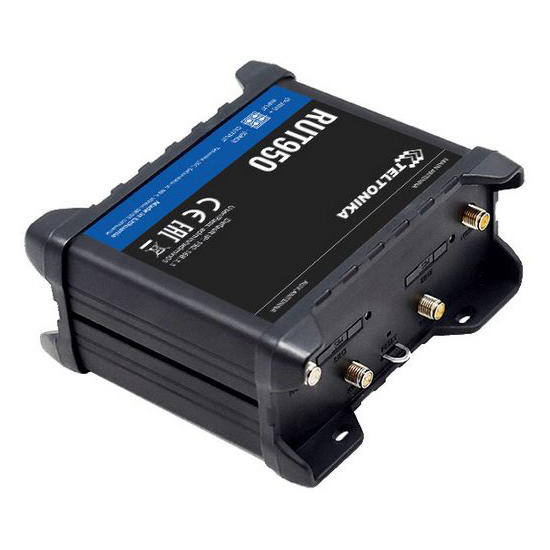

RUT950 is a professional industrial 4G/LTE WiFi router for IoT applications. This rugged mobile device delivers high performance cellular communication in harsh environments and a wide operating temperature range. It is also compatible with RMS – Teltonika‘s remote management platform that is ready to deliver the true value of M2M and IoT networking applications.

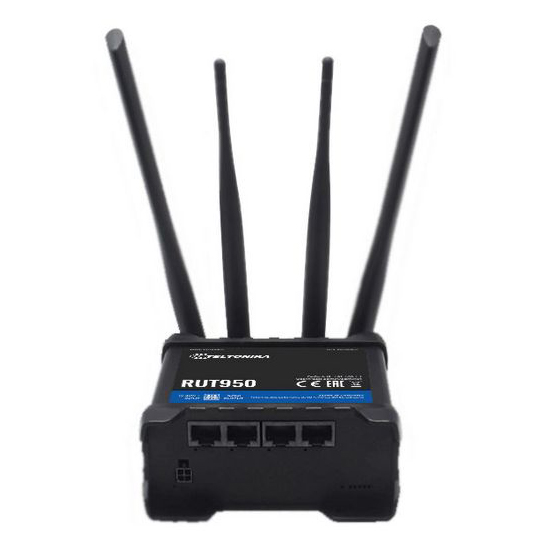

The router is equipped with four Ethernet ports, two external SIM holders, digital input/output and signal strength status LED indicators, while external SMA connectors make it possible to attach desired antennas. RUT950 is a professional LTE CAT4 router empowered by RutOS - a unified operating system for all Teltonika routers, created for the most demanding mobile networking applications. Ensure your business continuity with Dual-SIM and 4G failover.
- LTE Cat 4 with speeds up to 150 Mbps
- Automatic switch to available backup connection
- Wireless Access Point with Hotspot functionality
- Dual SIM – significantly reduce roaming costs
- 4x Ethernet ports with VLAN functionality
- Compatible with Teltonika Remote Management System
Hardware
- Mobile: 4G (LTE) – Cat 4 DL up to 150 Mbps, UL up to 50 Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS
- CPU: Atheros Wasp, MIPS 74Kc, 550 MHz
- Memory: 16 MBytes Flash, 128 MBytes DDR2 RAM
- Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN ports
- Power supply: 9 – 30 VDC, 4 pin DC connector
- Inputs/Outputs: 1 x Digital Input, 1 x Digital Open Collector Output on power connector
- Connectors: 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA
- SIM: 2 x external SIM holders
- Status LEDs: 1 x bi-color connection status, 5 x connection strength, 4 x LAN status, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing, plastic panels
- Dimensions: 100 mm x 110 mm x 50 mm
- Weight: 256g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
- Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Unique networking features: VLAN, Load balancing, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
- Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
- Authetication: Pre-shared key, digital certificates, X.509 certificates
- Keep settings: Update FW without losing current configuration
- Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
