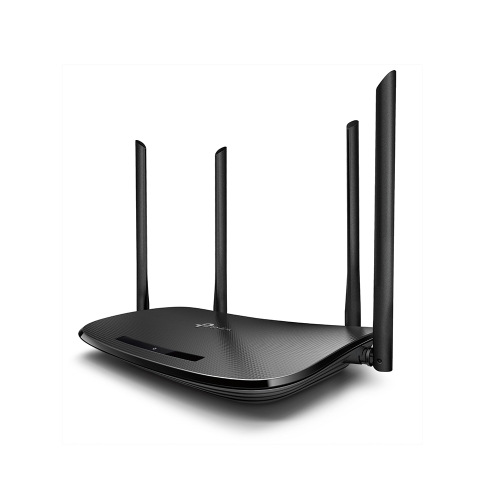

TP-Link Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router

AC1200 Wireless VDSL/ADSL Modem Router Archer VR300

Highlights

Parental Controls: manage responsible internet access for your children
Guest Network: provides separate access for guests while securing the home network
Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
Quality of Service: prioritizes network traffic by device or application
IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
IPv6: compatible with IPv6 (Internet Protocol version 6)
Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)

Technical Specifications:

HARDWARE FEATURES

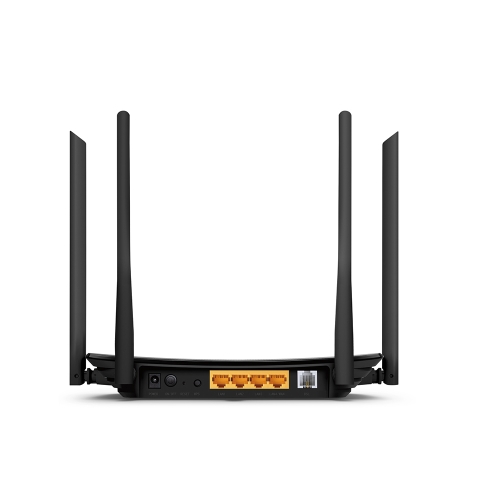

Interface	3 10/100 RJ45 LAN Ports 1 10/100 RJ45 LAN/WAN Port 1 RJ11 Port
Button	WPS Button Power On/Off Button Reset Button
Power Supply	12V/1A
VDSL2 Standards	ITU G.993.2, Up to 17a pro¬le (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	38529076mm
Antenna Type	4 fixed external antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Wireless Speeds	867Mbps at 5GHz 300Mbps at 2.4GHz
Transmit Power	2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP)
Wireless Functions	Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)

SOFTWARE FEATURES
Quality of Service	ATM QoS, Bandwidth Control
Security	NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes	VDSL/ADSL Modem Router, Wireless Router
Management	Web Based Con¬guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding	Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec Passthrough
Protocols	Supports IPv4 and IPv6
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions	Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
Guest Network	2.4GHz guest network, 5GHz guest network

OTHERS
Certification	CE, RoHS, RCM

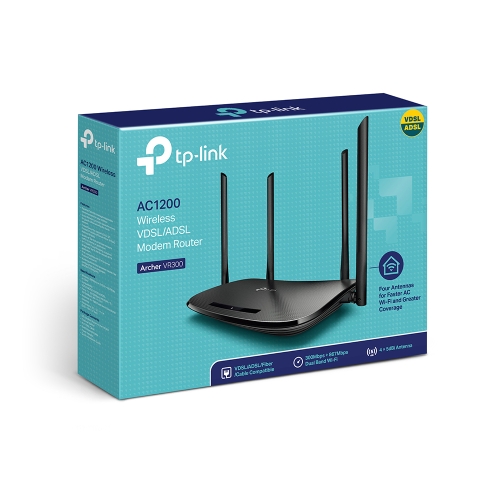

Package Contents	· AC1200 Wireless VDSL/ADSL Modem Router Archer VR300 · External Splitter · RJ11 DSL Cable · RJ45 Ethernet Cable · Power Adapter · Quick Installation Guide
System Requirements	· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux · Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser · Subscription with an Internet Service Provider (for Internet access)
Environment	· Operating Temperature: 0°C~40°C (32°F ~104°F) · Storage Temperature: -40°C~70°C (-40°F ~158°F) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~90% non-condensing
