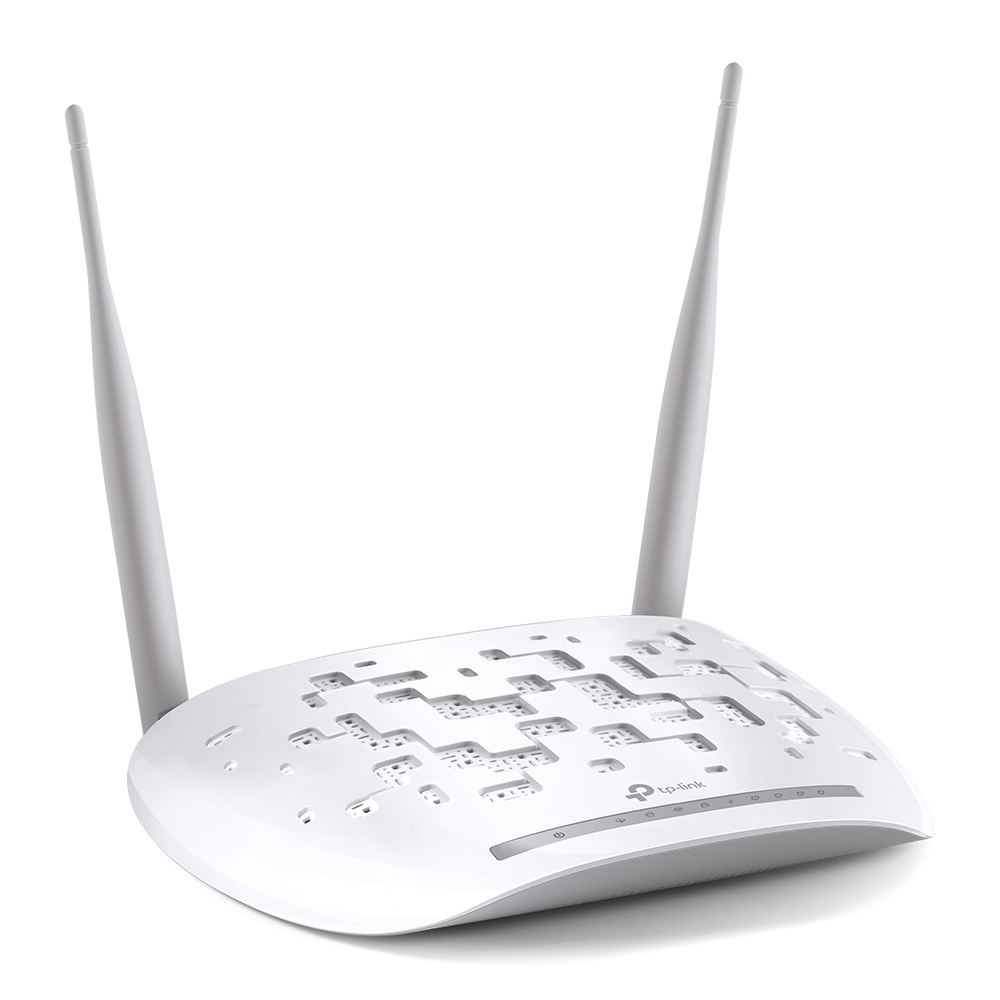

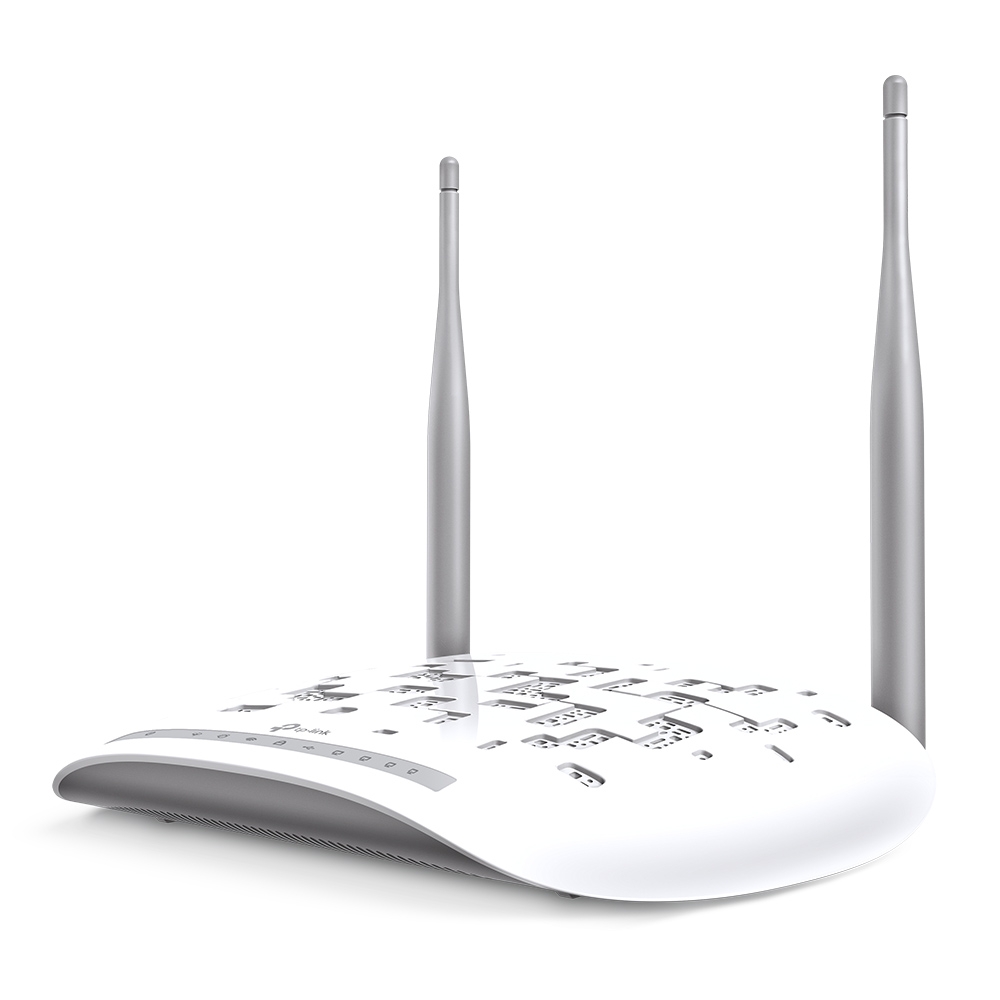

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router
|
||||||||||||
TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
| HARDWARE FEATURES | |
|---|---|

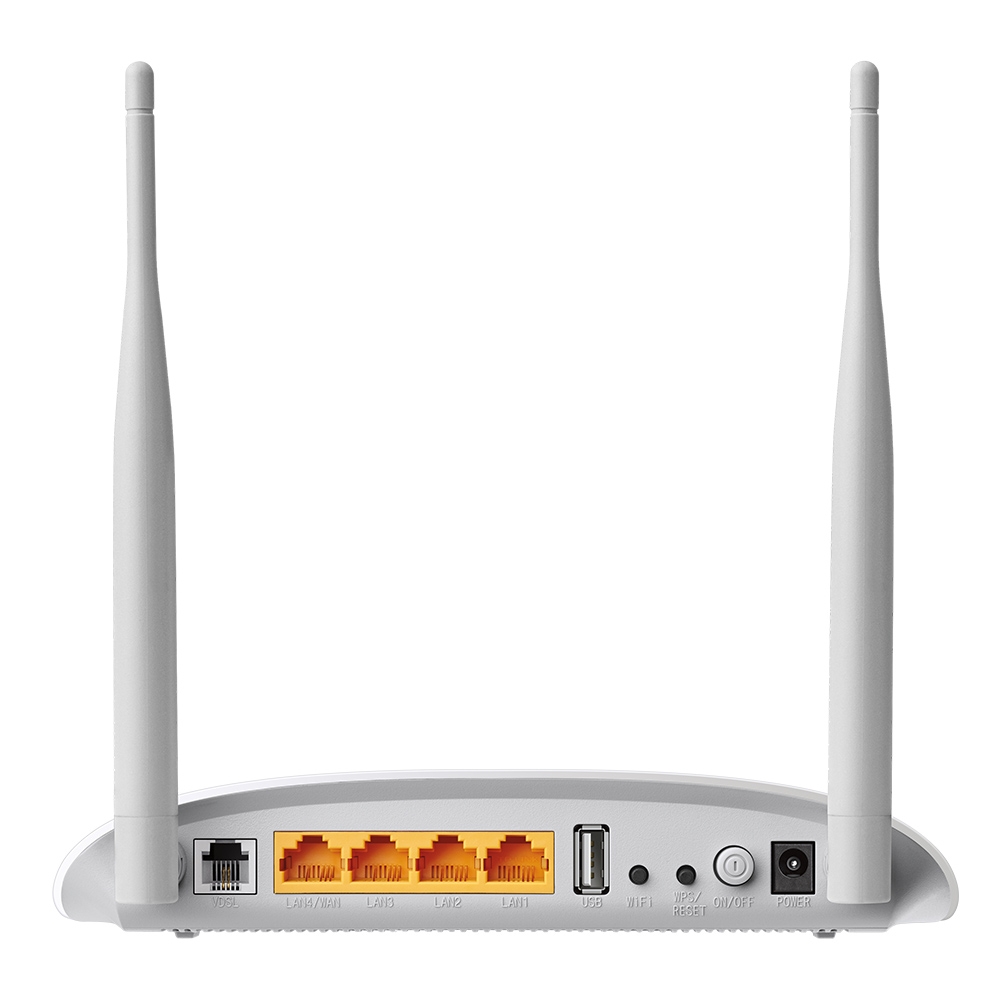

| Interface | 4 10/100Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port |
| Button | 1 Power On/Off Button 1 WPS/RESET Button 1 Wi-Fi On/Off Switch |
| External Power Supply | 12VDC/1A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards | ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 7.7*5.1*1.4 in. (195×130×36mm) |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2 x 5dBi |
| Compatibility | NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode. NBN - Fibre to the Building (FTTB) - DSL Modem Router Mode. NBN - Fibre to the Premises (FTTP) - Wireless Router Mode. NBN - Fibre to the Home (FTTH) - Wireless Router Mode. For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
| IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
| Advanced Features | Ethernet WAN (EWAN) Guest Network, Wireless Schedule Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
| USB Sharing | Storage Sharing FTP Server Media Server Print Server |
| IGMP | IGMP snooping V1/V2/V3 IGMP Multicast |
| IPSec VPN | 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |

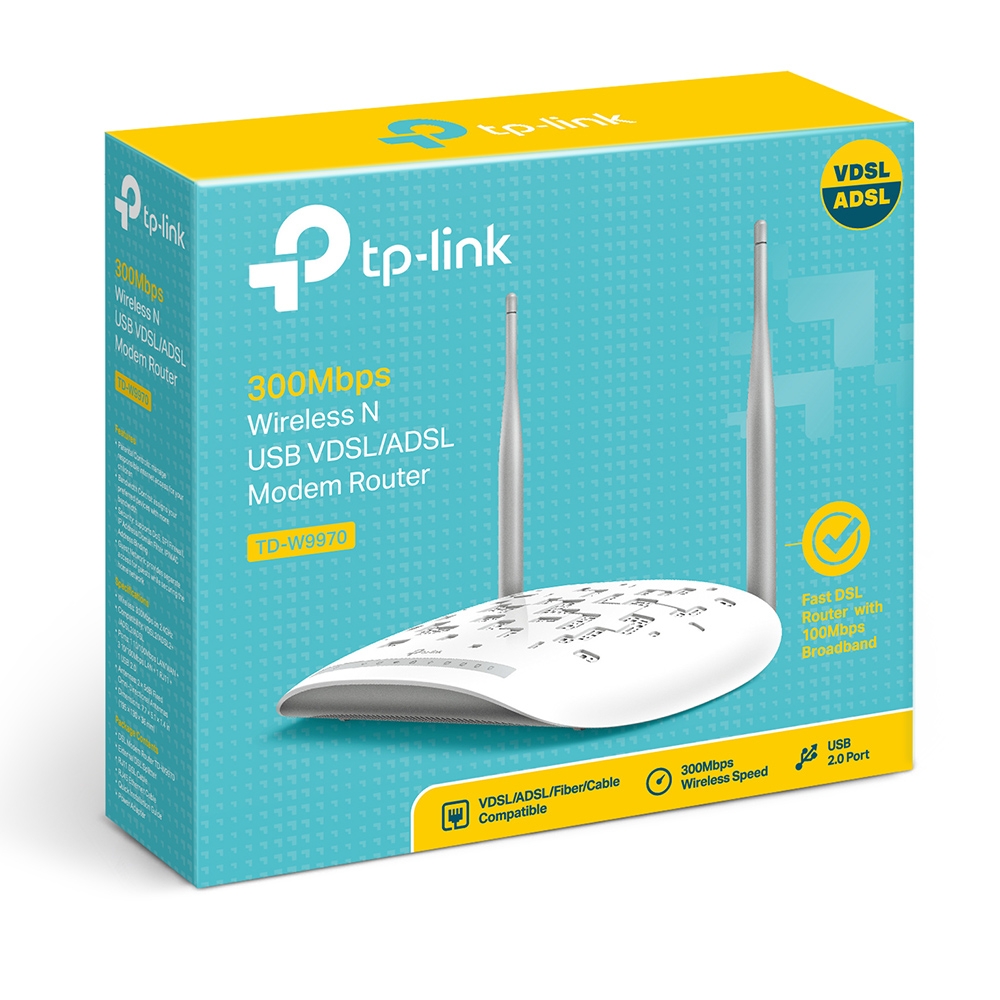

| Package Contents | TD-W9970 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements | Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited 3-Year Warranty For further information on our warranty policy please visit TP-Link Australia website. |
