TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter
SKU: WBT0442
Model Name: Archer T4E
Availability:
IN STOCK
Sale Price: $48.30 inc. GST
Quantity:

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E

Highlights
  • Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
  • High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
  • 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage

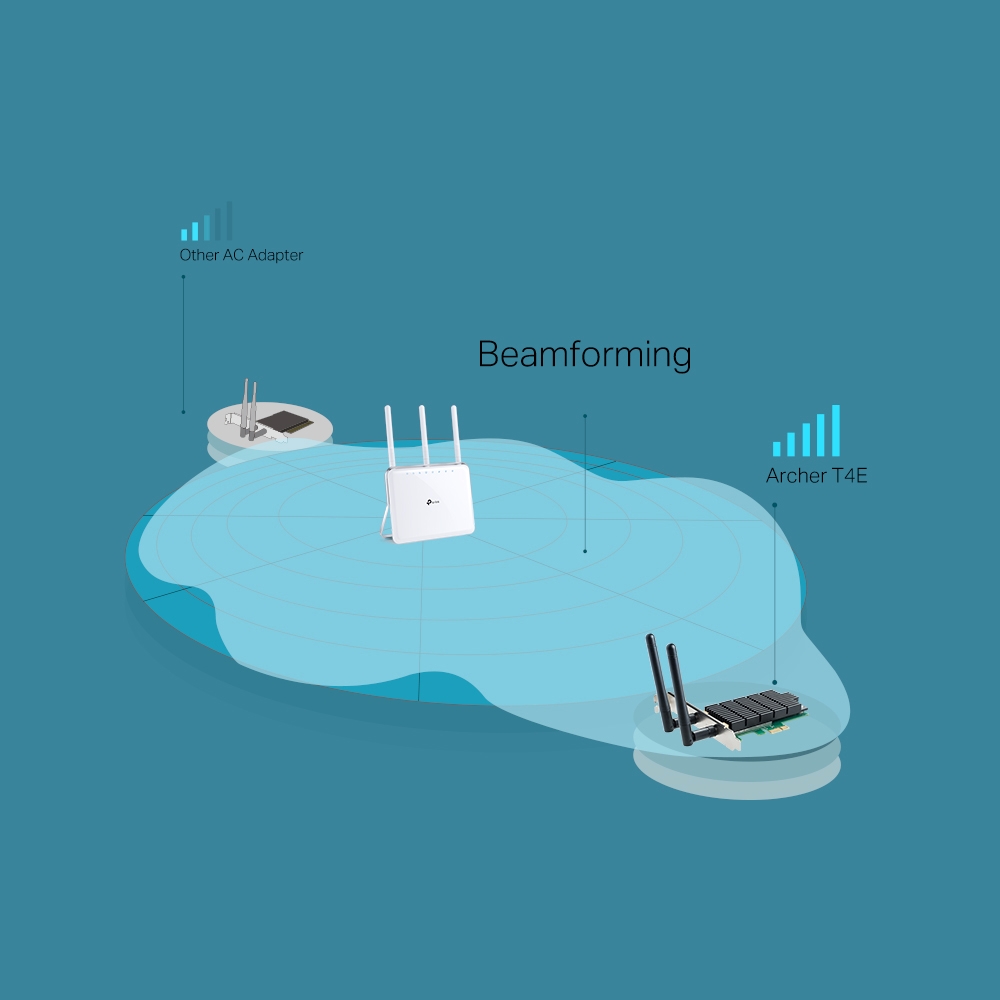

  • Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists

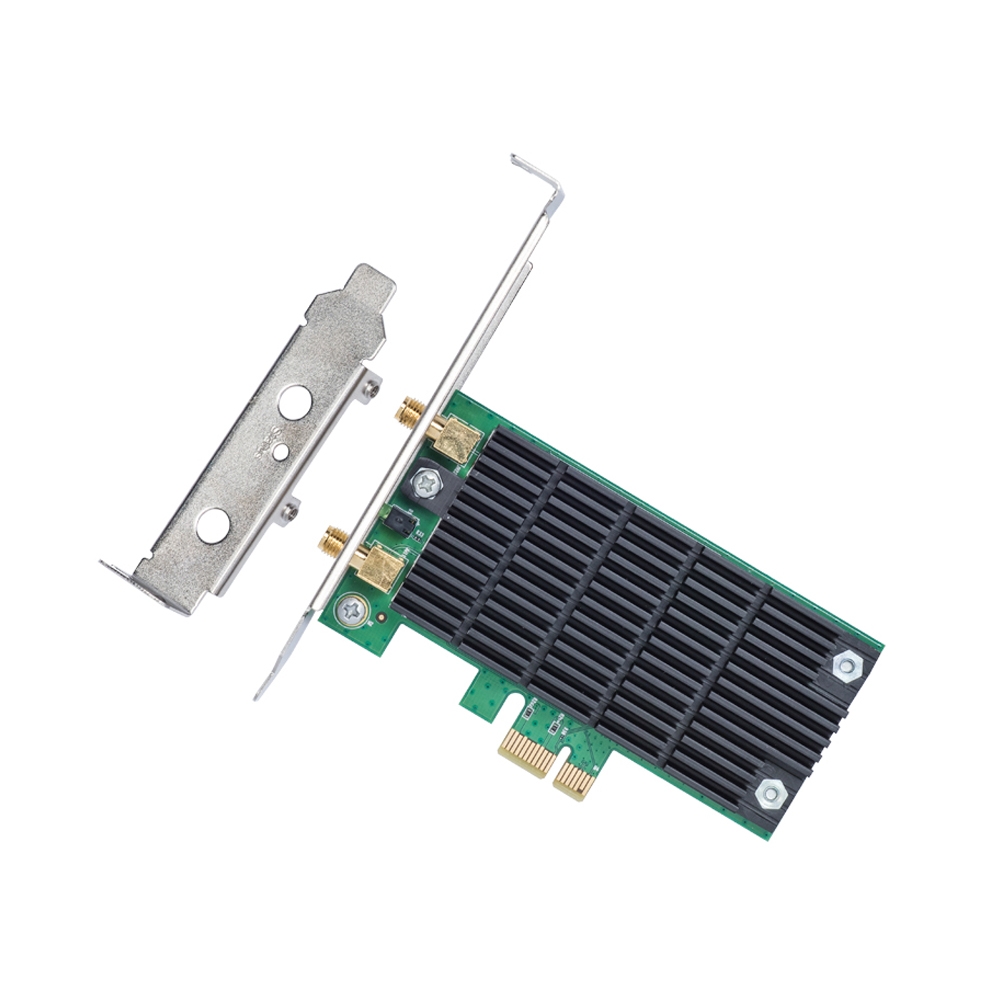

  • Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
  • 2×2 MIMO – Users can easily access a high-speed wireless connection
  • Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
Technical Specifications:
HARDWARE FEATURES
Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type 2 Dual Band Detachable Antennas

WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate 5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS
Certification CE, FCC, RoHS

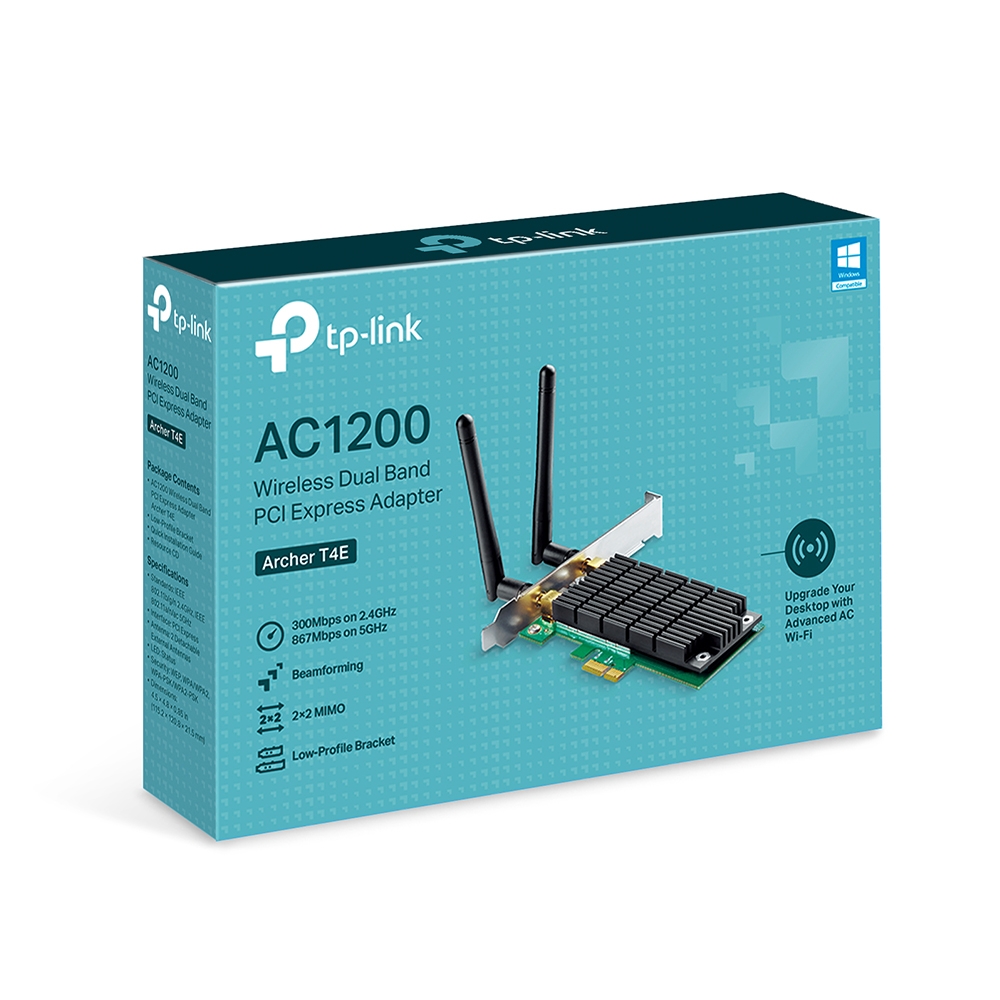

Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7/XP (32/64bit)
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
