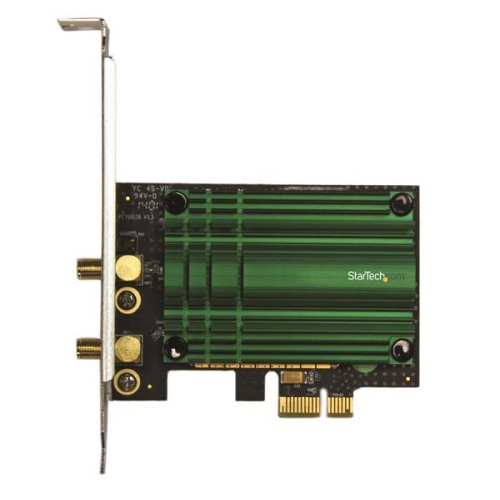

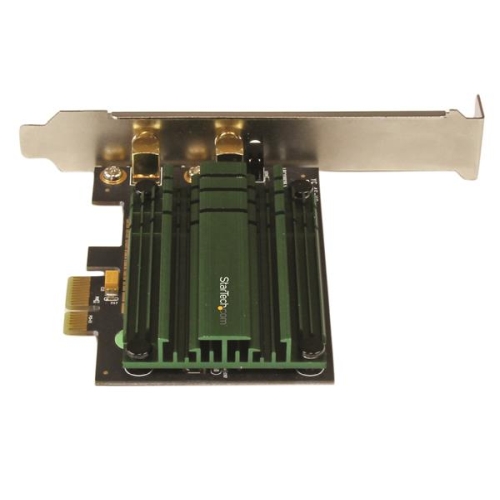

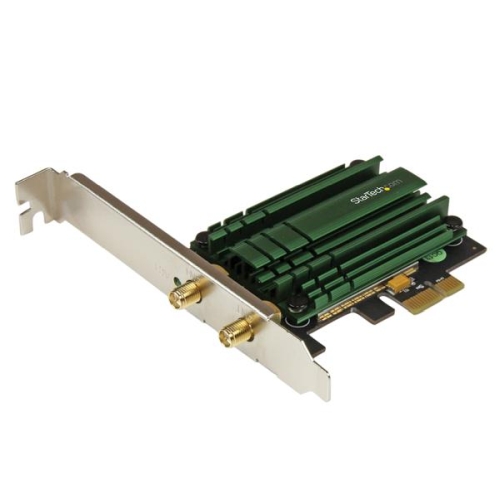

StarTech PEX867WAC22 PCIe AC1200 Dual Band 802.11ac Wireless-AC Network Adapter
|
||||||||||||
The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot.
With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming.
This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.
Backed by a StarTech.com 2-year warranty, with free lifetime technical support.
The StarTech.com Advantage| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Antenna Configuration | 2x2:2 (TxR:S) |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8812AE |
| Industry Standards | IEEE 802.11ac Draft 2.0, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
| Interface | Wireless Ethernet |
| Performance | |
| Frequency Range | 2.400 ~ 2.484GHz 5.180 ~ 5.850GHz |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 867 Mbps (5 GHz) 300 Mbps (2.4 GHz) |
| Security Features | WEP Data Encryption |
| WPA and WPA2-PSK Data Encryption | |
| TKIP/AES | |
| WPA and WPA2 Enterprise Data Encryption | |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| 1 - Wireless AC (IEEE 802.11ac) | |

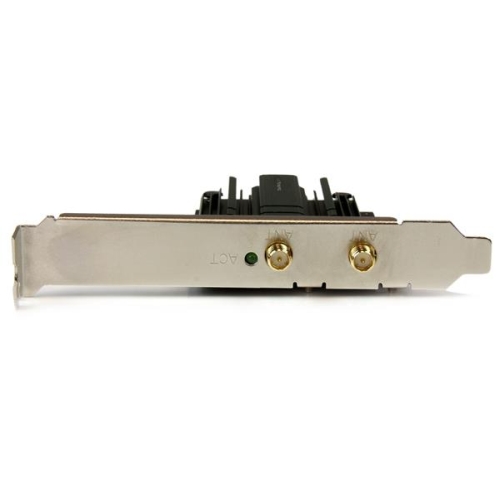

| External Ports | 2 - RP-SMA (Coax, Reverse Polarity SubMiniature A) Female |
| Software | |
| OS Compatibility | Windows XP, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x1 (or higher) slot |
| Indicators | |
| LED Indicators | 1 - Link / Act |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Physical Characteristics | |
| Product Height | 4.7 in [120 mm] |
| Product Length | 3.4 in [87 mm] |
| Product Weight | 2.9 oz [82 g] |
| Product Width | 0.7 in [18 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 13.7 oz [388 g] |
| What's in the Box | |
| Included in Package | 1 - PCI Express Wireless AC Card |

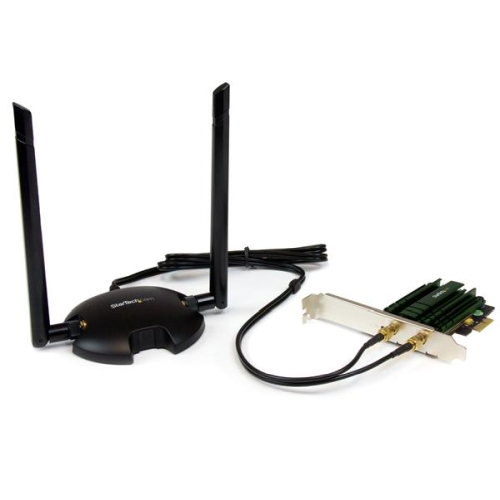

| 2 - 5 dBi Dual Band Antennas | |
| 1 - Antenna Stand | |
| 1 - Low Profile Bracket | |
| 1 - Driver CD | |
| 1 - Instruction Manual | |
