StarTech PEX100S 1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card

SKU:	4835670
Model Name:	PEX100S
Availability:	IN STOCK
Sale Price:	$68.50 inc. GST
Quantity:

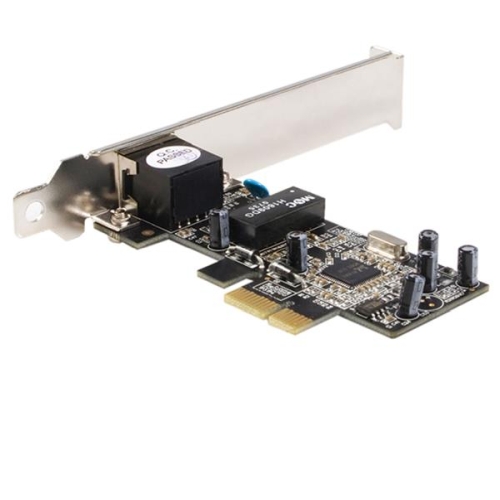

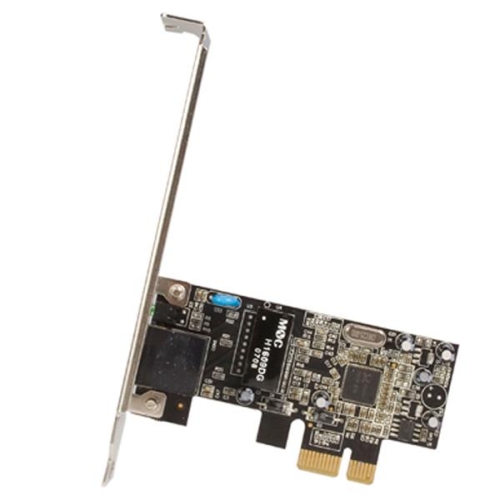

1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.

The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.

The StarTech.com Advantage

Cost effective and simple Ethernet networking for a desktop computer systems
Backed by a StarTech.com lifetime warranty and free lifetime technical support

Features

Single 10/100Mbps RJ45 Ethernet port
Compliant with IEEE802.3 CSMA/CD, 802.3 10Base-T and 100Base-TX standards
Crossover Detection & Auto-Correction (Auto-MDIX)
Full and Half duplex mode support
Link speed and duplex mode auto-negotiation
Link/Activity and 10/100Mbps LED indicators
Supports Wake-on-LAN

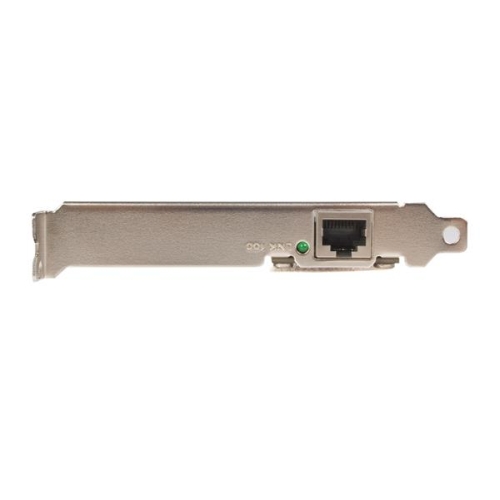

Full/Low Profile installation brackets included

Warranty Information
Warranty	Lifetime
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8101E
Interface	RJ45 (10/100 Ethernet)
Ports	1
Performance
Compatible Networks	10/100 Mbps
Maximum Data Transfer Rate	100 Mbps
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - RJ-45 Female
Software
OS Compatibility	Windows 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2016 Linux 2.6.x to 4.11.x LTS Versions Only
Indicators
LED Indicators	1 - Link Status
Physical Characteristics
Product Height	0.8 in [21 mm]
Product Length	3.6 in [92.5 mm]
Product Weight	1.6 oz [45 g]
Product Width	4.7 in [120 mm]
Packaging Information
Shipping (Package) Weight	0.3 lb [0.1 kg]

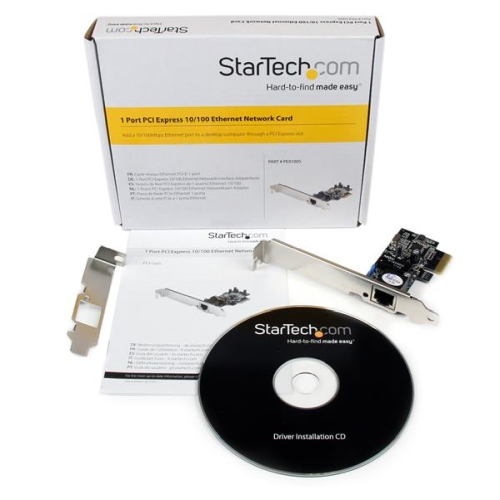

What's in the Box
Included in Package	1 - 10/100 PCI-Express Ethernet Card
	1 - Low Profile Bracket
	1 - Driver CD
	1 - Instruction Manual
