StarTech PEX300WN2X2 300Mbps PCIe 802.11b g n Network Adapter Card 2T2R 2.2dBi
SKU: AA84072
Model Name: PEX300WN2X2
Availability:
IN STOCK
Sale Price: $94.00 inc. GST
Quantity:

PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi

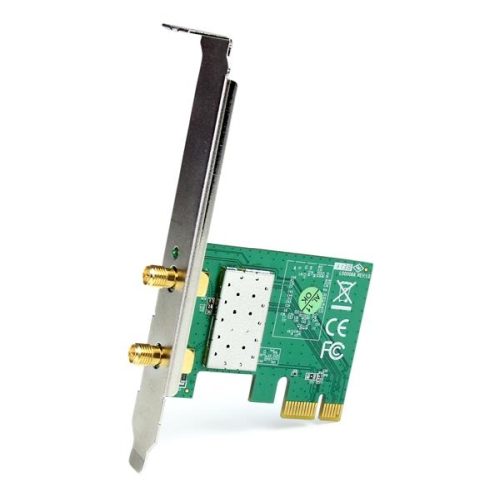

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage
  • PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
  • Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience
  • Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
Features
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
  • Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
  • Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
  • Supported security features: WEP (64-128-bit), WPA, WPA2, WPS
  • Support for WMM/WMM-PS Quality of Service (QoS)
  • Infrastructure and Ad-Hoc network modes support

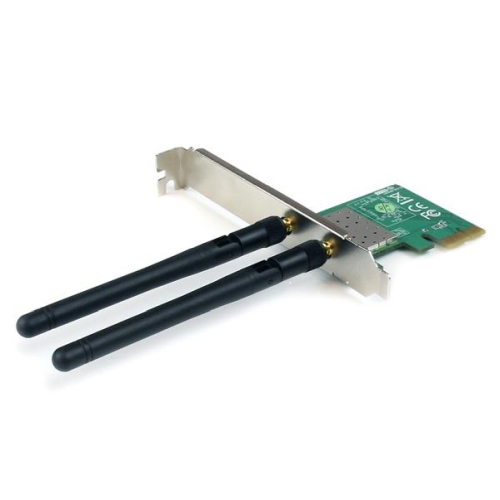

  • Dual detachable 2dBi antennas
  • Includes Low Profile/Half-Height installation bracket
Warranty Information
Warranty 2 Years
Hardware
Antenna Configuration 2x2:2 (TxR:S)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Ralink RT5392
Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Interface Wireless Ethernet
Performance
Bandwidth 20/40 MHz
Frequency Range 2.4 GHz ~ 2.484 GHz
Full Duplex Support Yes
Maximum Data Transfer Rate 802.11n: 300 Mbps
Modulation OFDM/DSSS/DBPSK/DQPSK/CCK
Security Features TKIP/AES
  WEP Data Encryption
  WPA and WPA2-PSK Data Encryption
  WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA
Connector(s)

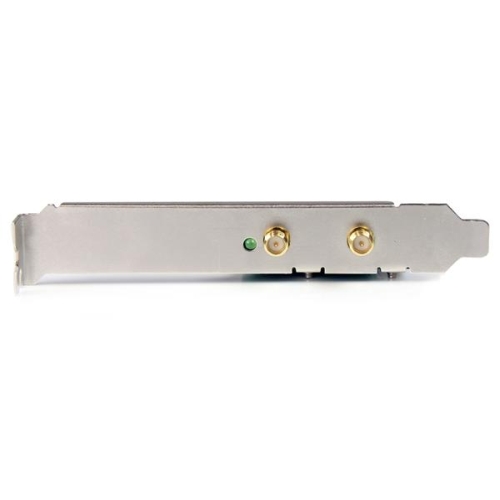

Connector Type(s) 2 - RP-SMA (Coax, Reverse Polarity SubMiniature A) Female
Software
OS Compatibility Windows XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2
Linux 2.6.32 to 3.13.x LTS Versions only
Special Notes / Requirements
System and Cable Requirements Available full profile PCI Express expansion slot
Indicators
LED Indicators 1 - Link/Activity (green)
Environmental
Humidity 5% ~ 95% RH
Operating Temperature -10°C to 70°C (14°F to 158°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Product Height 0.7 in [18 mm]
Product Length 3 in [75 mm]
Product Weight 1.3 oz [36 g]
Product Width 1.9 in [49 mm]
Packaging Information
Package Quantity 1
Shipping (Package) Weight 5.7 oz [162 g]

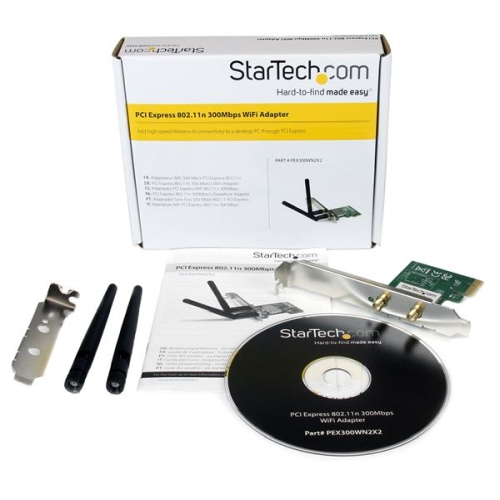

What's in the Box
Included in Package 1 - PCI Express Wireless Networking Card
  2 - Antenna
  1 - Low Profile Bracket
  1 - Driver CD
  1 - Instruction Manual
