TP-Link TG-3468 Gigabit PCI Express Network Adapter
SKU: WNT0058
Model Name: TG-3468
Availability:
IN STOCK
Sale Price: $21.30 inc. GST
Quantity:

Gigabit PCI Express Network Adapter TG-3468

Highlights
  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN
Technical Specifications:
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)

OTHERS
Certification CE, FCC, RoHS

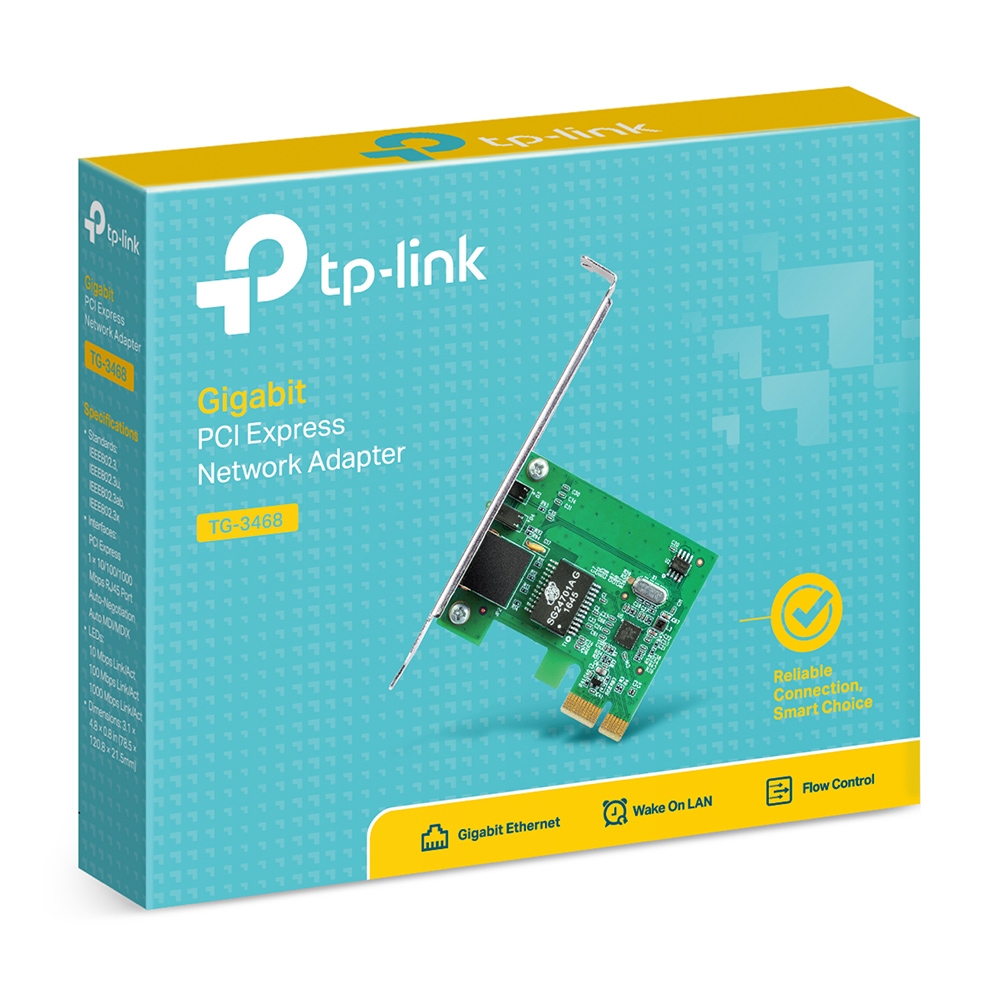

Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows Vista / 7 / 8 / 8.1 / 10 / XP
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
For further information on our warranty policy please visit TP-Link Australia website.
