POWERLINK PT-H10DN-1W Speedy2 Wireless 300Mbps 802.11b/g/n MIMO USB Adapter
|
||||||||||||
Description:
The POWERLINK Speedy2 is a powerful WLAN USB adapter w/2 5dBi antenna. The advantage of 2x5dBi antennas and 1000mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. Not only the improvement of ultra range it performs it also can increase the transmit and receipt speed. Thus the Speedy2 provides powerful and stable performance to PC & NB linked into unlimited wireless network world. Upgrade your networking today and enjoy the faster speed internet experience.
Features:
Technical Information:
| RF Chipset | Ralink RT3072 |
| Standard | IEEE 802.11b/g/n |
| Interface | USB 2.0 and 1.1 compliant |
| Antenna Type | RP-SMA Jack |
| Transmitter Power |
802.11b: 28 ± 1.5dBm 802.11g: 23 ± 1.5dBm 802.11n: 23 ± 1.5dBm |
| Power consumption | Transmit<1000mA. Receive<600mA |
| Operating Range | Up to 1500 meters (Depending on surrounding environment) |
| Frequency |
IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz |
| Modulation Method |
IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM |
| Data Transfer Rate |
IEEE 802.11b: 1 2 5.5 11Mbps. IEEE 802.11g: 6 9 12 18 24 36 48 54Mbps. 802.11n: 20Mhz up to 144Mbps 40Mbps up to 300Mbps |
| Security | 64/128bit WEP (Hex&ASCII). WPA WPA-PSK WPA2 WPA2-PSK TKIP/AES |
| Dimension |
Antenna length: 191mm USB Adapter: 90mm x 65mm x 20mm |
| Package Content |

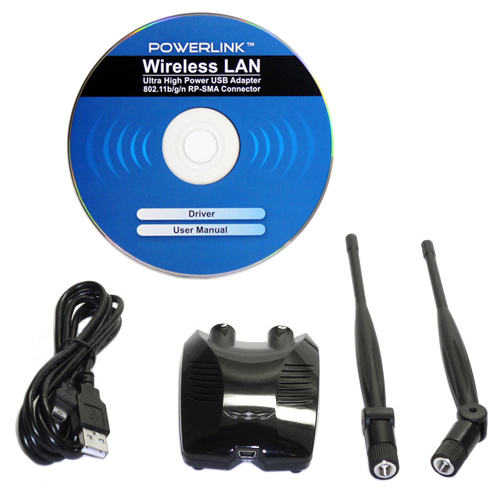

802.11b/g/n Wireless LAN USB Adapter 2pcs High Gain 5dBi Dipole Antenna 5ft USB Cable Driver/Manual CD |
| Operating System |
Win 2000/XP/x64/Vista/7 Mac OSX Linux Kernel 2.6.6 and after (Support BackTrack 3 4) |
