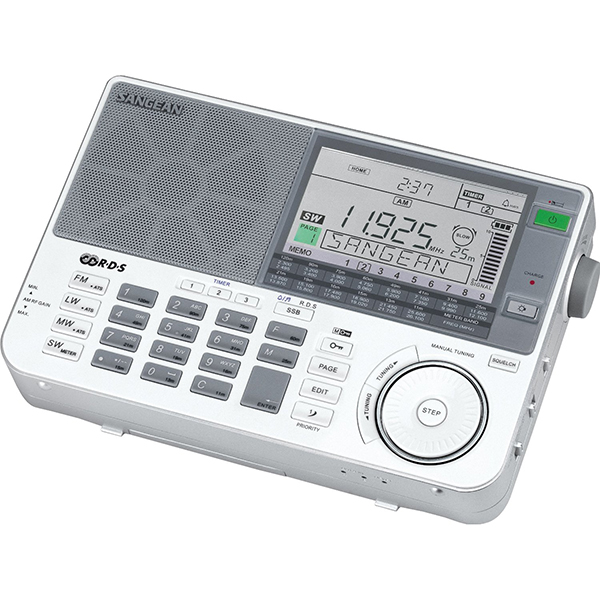

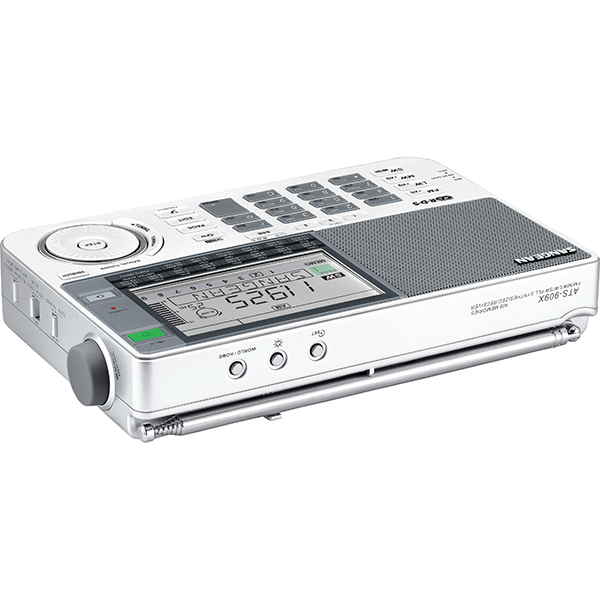

Sangean ATS-909X Worldband Radio w/406 Presets
SKU: AB04126
Model Name: ATS-909X
Availability:
IN STOCK
Sale Price: $520.40 inc. GST
Quantity:
Description:

Sangean's new and much improve ATS-909X World Band FM-Stereo / LW / AM / SW / AUX PLL Synthesized Portable Receiver is the flagship of the Sangean line Receivers. It provides performance and features generally found in the more expensive table top communication receivers into a very compact and stylish package.

For the monitoring professional who's on the go the ATS-909X is the ideal choice! Featuring wide-band AM/FM coverage from long wave medium wave short wave three programmable wake timers available the clock displays even when the radio is tuning and has 42 world city times stored. The new enlarge LCD display also features a new bright white LED (higher brightness display) a signal strength battery life indicator AM Wide / Narrow filter FM Mono / Stereo Selector Switch SSB (Single Side Band): USB / LSB 40Hz / Tuning Step AM RF Gain Control.

And the amazing ease of operation the ATS-909X provides up to 406 memory channels so you can store all your favorite stations whether they're on shortwave local AM broadcast or FM public service frequencies! Take the ATS-909X anywhere you go....and stay on top of the action!

The DSP comes as standard (Digital Signal Processing) with the unit & includes a number of features which can sig-nificantly enhance re-ception through im-proved interference re-jection.

The ATS-909X will also display FM RDS / RBDS with PS PTY RT and CT features for station name and clock time in areas where this service is available. For eve-ryday portable operation use four AA batteries (not included). For operation from your home choose the supplied AC-AC power adapter.

Features:

  • 406 Memory Preset Stations
  • ATS (Auto Tuning System) Auto Scan
  • Five Tuning Methods: Direct Frequency Tuning Auto Scan Manual Tuning
  • Memory Recall and Rotary Tuning
  • Large LCD Screen with Bright LED Backlight
  • Automatically Search for Strongest Signal Station within SW Station Pages
  • 3 Alarm by Radio or HWS (Humane Wake System) Buzzer
  • Built-in 42 World Cities Time Plus D.S.T. Device with 2 Editable City Names
  • AM Wide / Narrow Filter
  • FM Mono / Stereo Selector Switch
  • SSB (Single Side Band): USB / LSB 40Hz / Step on Fine Tuning
  • Squelch Function can adjust the receiving threshold to eliminate weak
  • transmissions
  • Adjustable Sleep Timer
  • Dual Conversion Device for MW / LW / SW
  • EEPROM for Memory Backup
  • 8 Characters for Editing Station Name on Display
  • Fine Tuning Control
  • Direct Key to Recall Favorite Station in One Button
  • Tone Control: (Music / Normal / News)
  • Individual Headphone Amplifier
  • Signal and Battery Strength Indicator
Technical Information:
TUNING Type PLL synthesized
Memory Presets 406
Rotary Tuning Yes
Auto Tuning System Yes
10 - Key Input Yes
DISPLAY LCD / VFD / Dial Scale LCD
View Area ( inch ) 3.32 x 1.94
Graphic / Character Type Segment
Back Light Yes
FEATURE Stereo Earphones
Battery Charger Yes
TUNER FM Frequency (MHz) : 87.5 - 108 / 76 - 108
  RDS : PS / PTY / RT / CT
LW Frequency (kHz) : 153 - 519
AM / MW Frequency (kHz) : 520 - 1710
(9 kHz / 10 kHz switch,

9 kHz for Australia MW)
SW Frequency (MHz) : 1.711 - 29.999
  Meter Bands : 12090756049413125211916151311
AM SSB : USB / LSB
  Dual Conversion : Yes
  Wide / Narrow : Yes
MEDIA Aux - in Yes
CLOCK Real Time Yes
Clock Sync FM RBDS - CT
Dual / World Time World time
Radio Alarm Yes
Buzzer Alarm HWS
Snooze Yes
Sleep Yes
AUDIO EQ Tone Control : NEWS / NORM / MUSIC (Slide)
OUTPUT DEVICES Speaker Size : 3 inches
  Impedance : 8 ohms
Buzzer Yes
OUTPUT POWER (TYPICAL) AC / DC in ( Speaker ) 1.5 W
Batteries (Speaker) 700 mW
Earphones 5 + 5 mW
POWER SUPPLY AC to AC in 9V AC / 0.7A
Batteries (Main Power) 4 x 1.5V (UM - 3)
I/O SOCKET AC to AC in Yes
Earphones Yes
Line - out Yes
Ext.Antenna SW
Aux - in Yes
REC Standby Yes
ACCESSORIES AC Adapter Yes
Carrying Pouch Yes
Earphones Yes

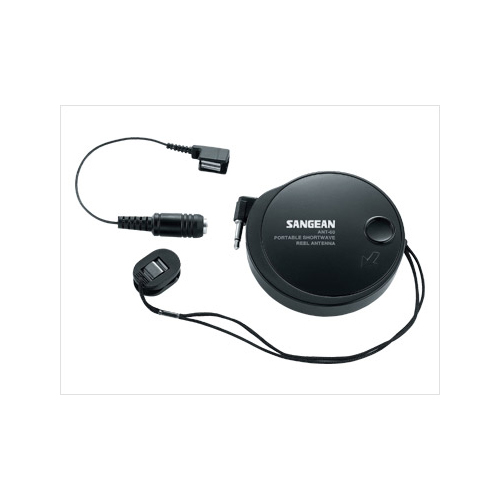

SW Antenna Yes (ANT-60)
DIMENSIONS Width ( inch ) 7.9
Height ( inch ) 5.3
Depth ( inch ) 1.5
Weight ( lb. oz ) 1 lb. 9.8 oz
