ATEN VE7832 15M True 4K HDMI Active Optical Cable (True 4K@15m)
|
||||||||||||
ATEN VE7832 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 15 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.

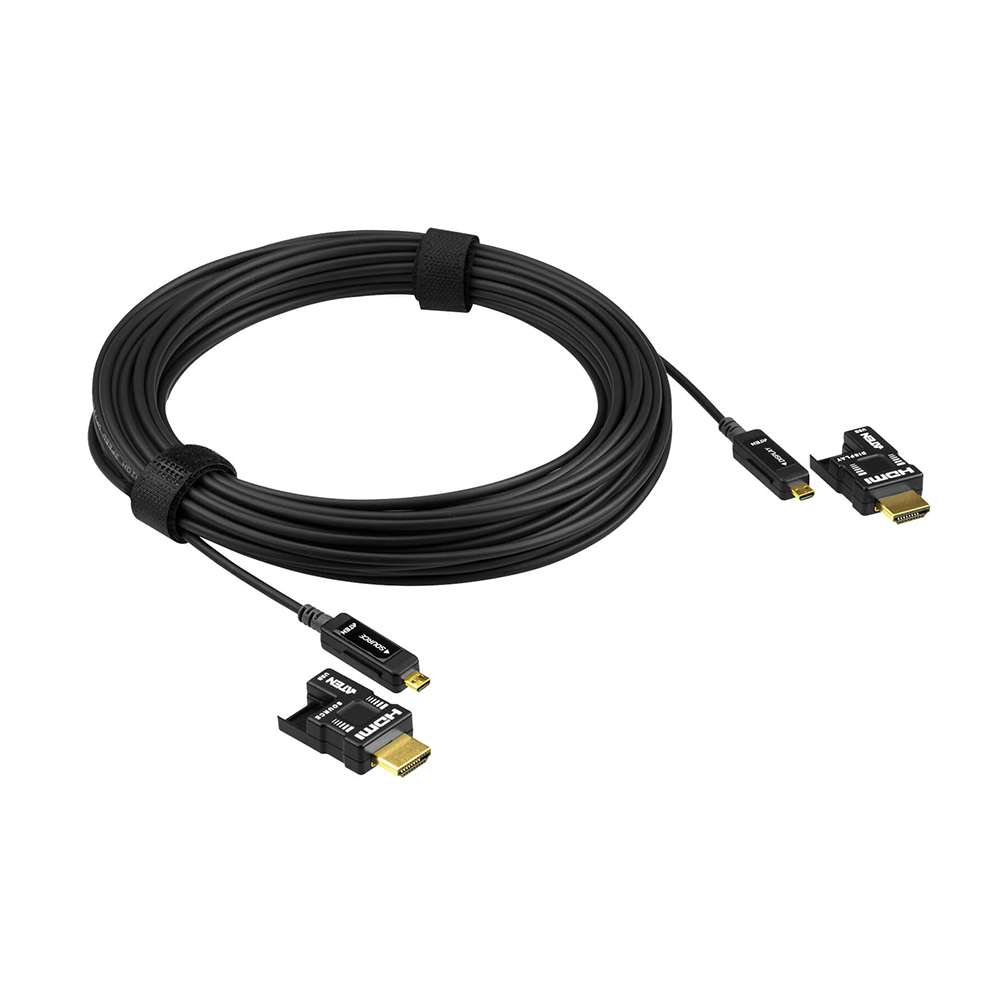

Engineered to meet the latest trend of integrator-friendly design, the VE7832 optical cable features pluggable gender and gold-plated connectors. Therefore, the cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
| Certifications | |
| Certifications | Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF |
| Notification | Bend Radius: 6mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Reduced EMI & RFI |
| Jacketed | |
| Material | UL Plenum(CMP-OF) |
| Conductor | |
| Construction | 6 x Insulated Copper wire (28 AWG) 4 x Fiber |
| Cable Length | 15M / 49.21ft |
| Communication | |
| Signals | TMDS / HDCP 2.2 / EDID / CEC |

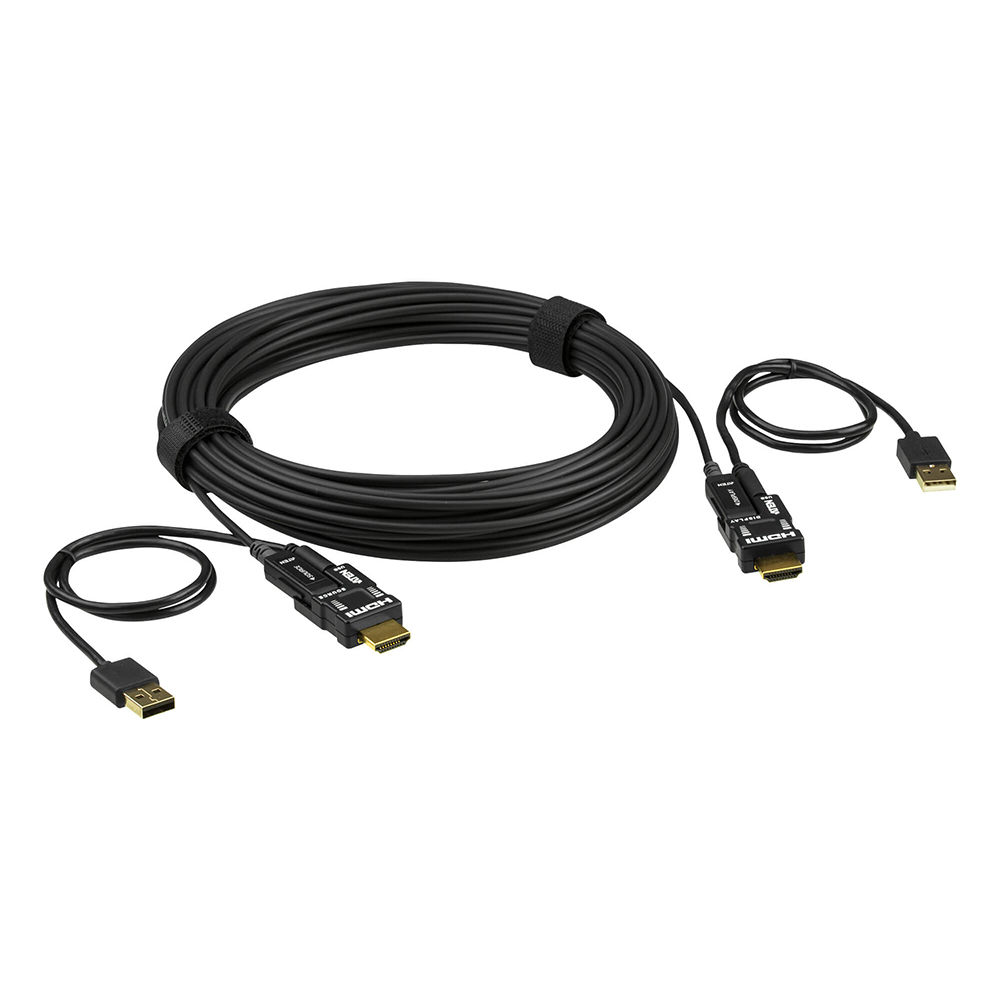

| Power (Optional) | Optional power source: Micro USB to USB cable (45cm) 5V, 0.148A |
| Audio | |
| Input | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Cable Type | Cable Type: Hybrid optical with fiber and copper wire HDMI Standards: High Speed HDMI Cable |
| Video Input | |
| Interfaces | 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black) |
| Video Output | |
| Interfaces | 1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock | 600 MHz (Max.) |
| Compliance | HDMI (3D, Deep Color, 4K, HDR) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit |
| Max. Resolutions / Distance | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 15m |
| Power Consumption | DC5.3V:0.63W:2.15BTU |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32? to 122?) |
| Storage Temperature | -20°C to 70°C (-4? to 158?) |
| Humidity | 0 - 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Connector Case: ABS (Acrylonitrile Butadiene Styrene) |
| Weight | 0.28 kg ( 0.62 lb ) |
| Cable Outer Dimension | Cable Outer Diameter: 3.4mm (± 0.2mm) |
| Conductor Gauge | Copper wire (28 AWG) |
| Conductor Material | Copper |
| Unit weight | 0.28 kg / 0.62 lb |
