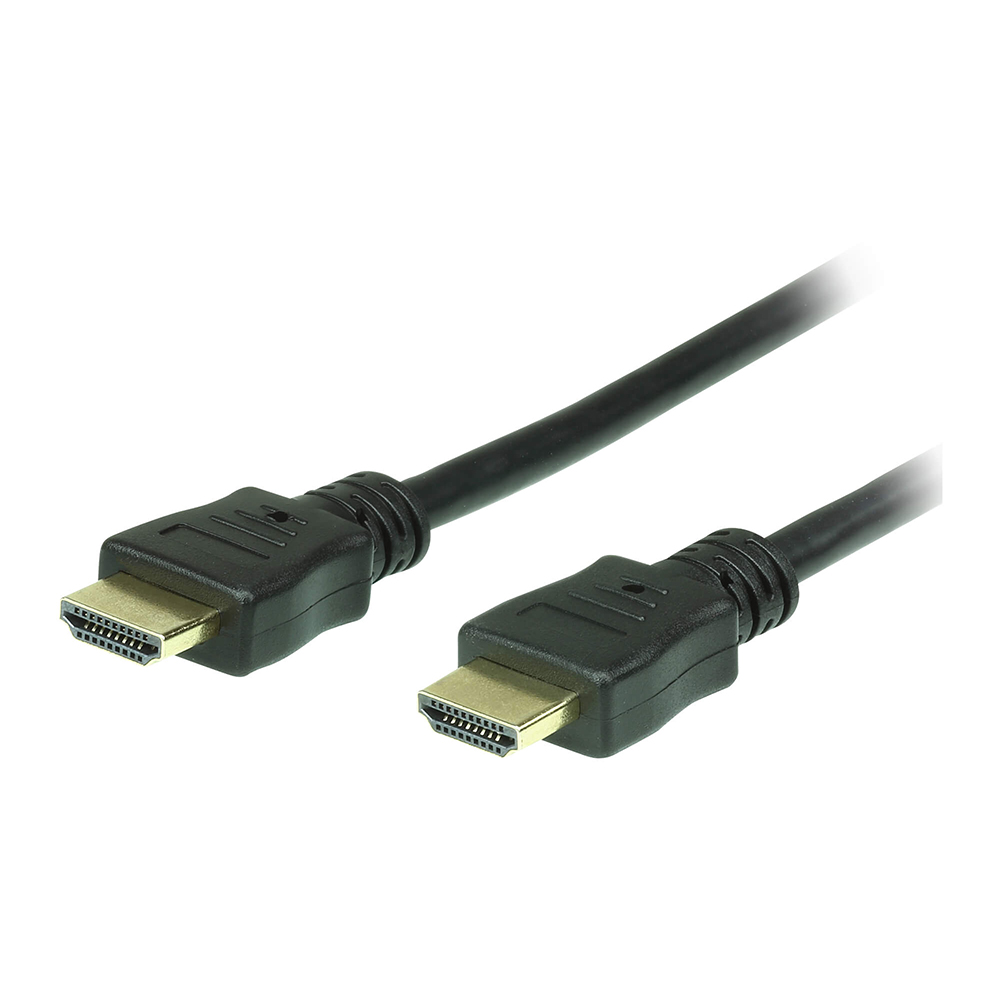

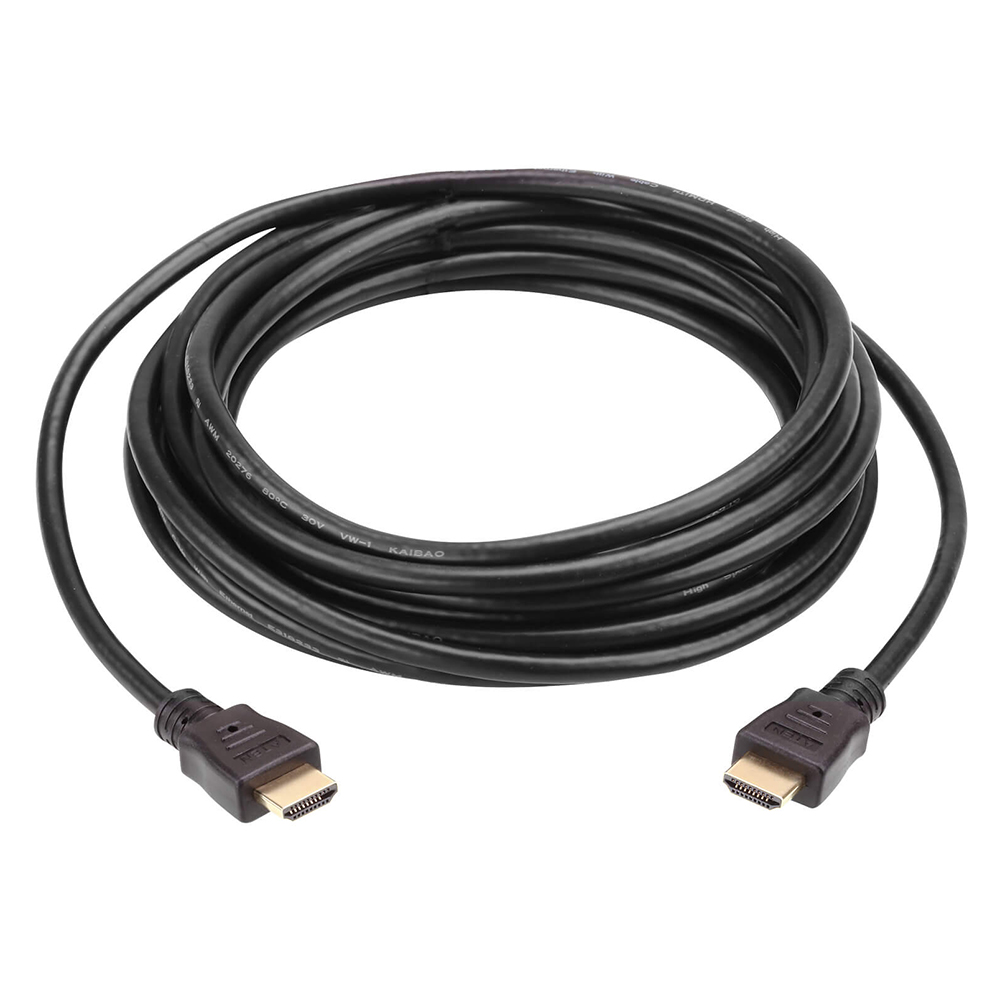

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).
- Superior video quality:
• up to 4K (4096 x 2160 @30Hz)
- HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Gold-plated connectors for reliable transmissions
- Available in lengths from 5 to 20 m
- RoHS compliant
- Bend Radius 90°**
Note:
* Feature only available if linked devices are HDMI Ethernet Channel enabled
** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
Diagram
Specifications
| Max. Video Resolution |
4096x2160@30Hz |
| Physical Properties |
| Cable Length |
20M |
| Cable Color |
Black |
| Cable Outer Dimension |
10.0 ± 0.20mm |
| Conductor Gauge |
26AWG |
| Conductor Material |
Tinned Copper |
| Connector Plating |
Gold |
| Connector Type |
HDMI (19pin) Male to Male |
| Cable Shield Type |
Aluminum Foil |
| Cable Jacket Type |
PVC |
| Environmental |
| Operating Temperature |
80? |
| Rating |
UL VW-1 (Flame rate), CSA |
Package Contents
- 1x 2L-7D20H 20m High Speed HDMI Cable with Ethernet
