ATEN VC-160A VanCryst VGA to DVI Converter
SKU: PJ10166
Model Name: VC160-AT-U
Availability:
IN STOCK
Sale Price: $189.10 inc. GST
Quantity:

The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power
sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.

Features:

  • Converts analog VGA signals to DVI output
  • Multiplatform support – Windows and Mac
  • No software required – eliminates incompatibility and installation issues
  • Compact and lightweight
  • Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC)
  • Automatically detects video input signals (indicated by LED)
  • Smart Video Display – Image quality is optimized based on the available resolution of the output device
  • Screen Position Button – screen position can be adjusted and restored for each output resolution

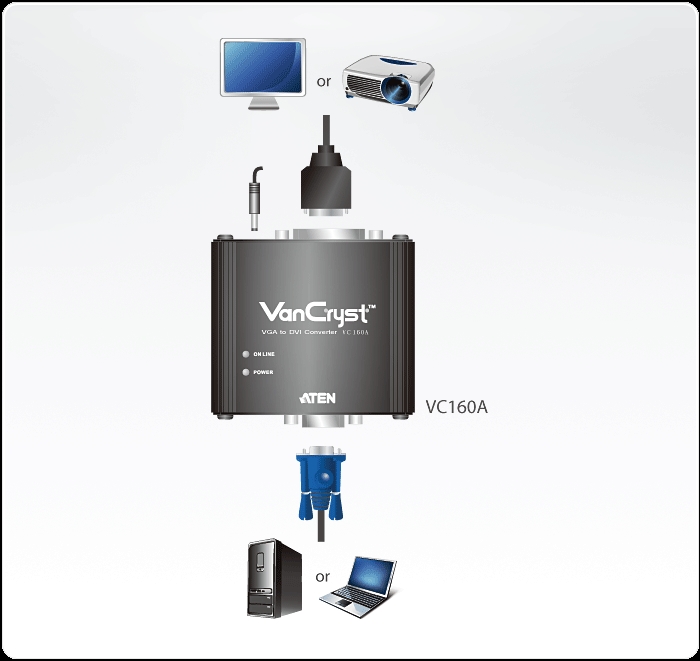

VC160A Diagram


Specifications:

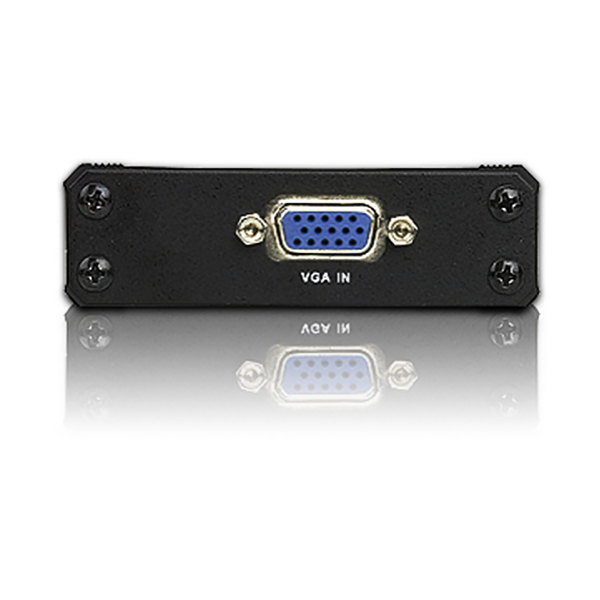

Connectors Video In 1 x HDB-15 Female (Blue)
Video Out 1 x DVI-D Female (White)
Power 1 x DC Jack
LEDs Power 1 (Green)
Video Sync 1 (Blue)
Switches Direction Adjustment 4 x Semi-recessed Pushbuttons
Memory 1 x Semi-recessed Pushbutton
Video Up to 1080P (HDTV) or 1920 x
1200 @ 60 Hz (PC)
Power Consumption DC 5.3V, 2.8W
Environment Operating Temp. 0 – 50°C
Storage Temp. –20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.15 kg
Dimensions
( L x W x H )		 7.90 x 7.81 x 2.43 cm
