ATEN VS-0204 VanCryst 2 in/4 Out VGA Audio/Video Matrix Switch - 1920x1440 up to 65m
SKU: PJ10200
Model Name: VS0204-AT-U
Availability:
IN STOCK
Sale Price: $199.30 inc. GST
Quantity:

Aten VS-0204 – 4-Port Video Matrix Switch (2 inputs 4 outputs)

The VS0204 Video Matrix Switch allows video and audio from 2 computers to be routed to 4 monitors,projectors and speakers. Ideal for presentations and applications where information from multiple computers is being delivered to multiple destinations.

Features:

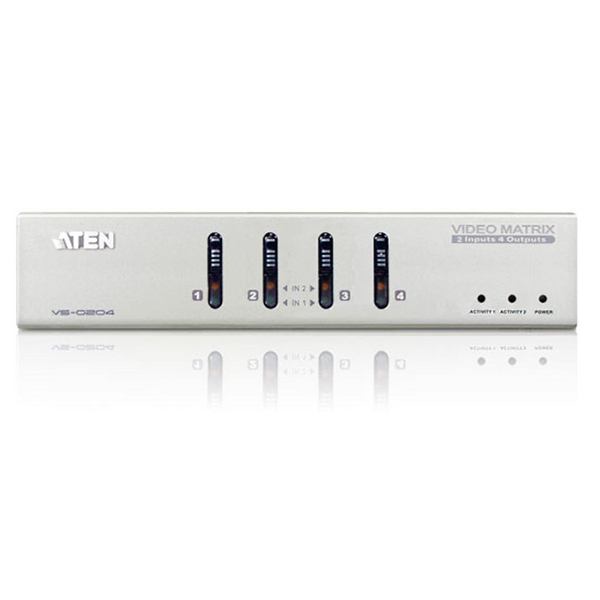

  • Each of the 4 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
  • Audio enabled.
  • Duplicate and enhance video signals to up to 65 m (max.) *
  • Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
  • With up to 300 MHz Video Bandwidth.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

    * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

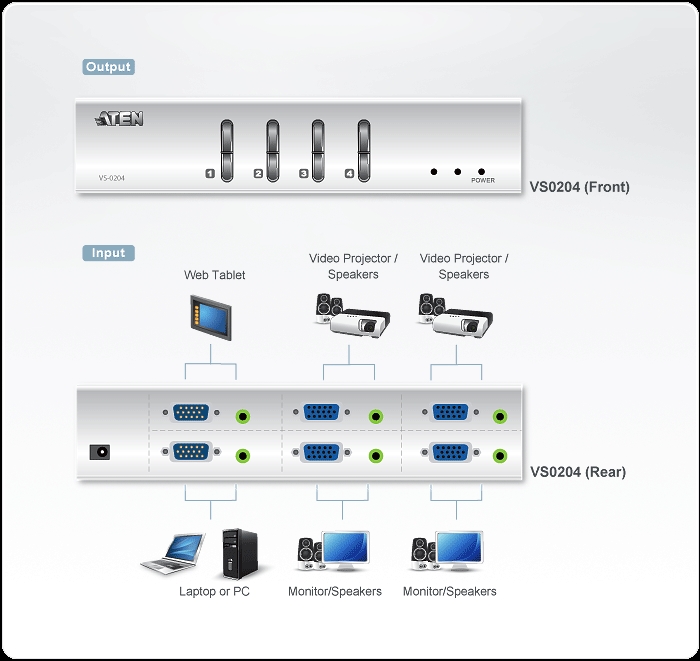

Diagram:
VS0204 Diagram

Specifications:

Display Connections 2
Computer Connections 4
Port Selection Pushbutton

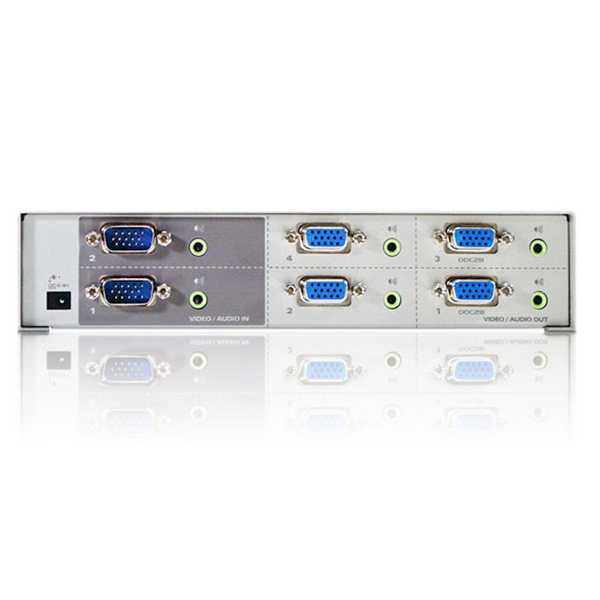

Connectors Input Vdieo 2 x HDB-15 Male (Blue)
Audio 2 x Mini Stereo Jack Female (Green)
Output Vdieo 4 x HDB-15 Female (Blue)
Audio 4 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack (Black)
LEDs Power 1 (Blue)
Activity / Source 2 (Green)
Input 1 4 (Green)
2 4 (Orange)
Video 1920 x 1440 @ 60Hz
Video Bandwidth 300 MHz
Sync Range Sync Positive/Negative
Signal Range 65m (210')
Power Consunption DC 5.3V ,3.02W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0..69 kg
Dimensions ( L x W x H ) 20.00 x 7.50 x 4.50 cm
