ATEN VE-811 HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
SKU: PJ11356
Model Name: VE-811
Availability:
IN STOCK
Sale Price: $497.50 inc. GST
Quantity:

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.

Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

  • HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
  • Supports wide screen format
  • Plug and play – no software required
  • Built- in 8KV/ 15 KV ESD protection
  • Rack Mountable
Diagram:

Package Contents

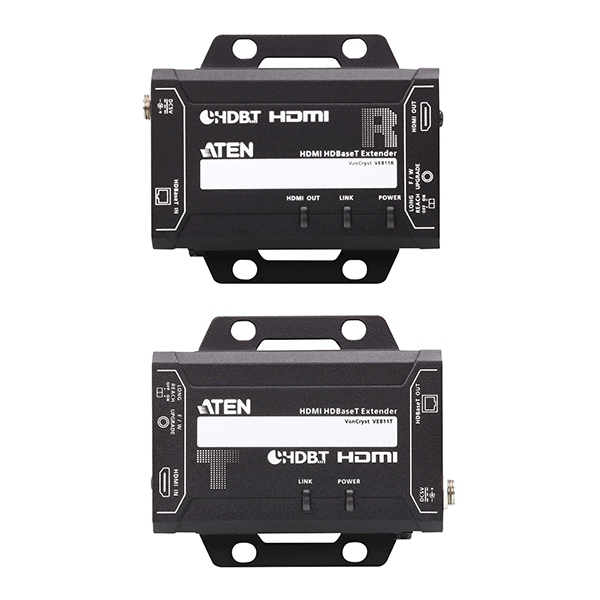

  • 1x VE811T HDMI HDBaseT Transmitter
  • 1x VE811R HDMI HDBaseT Receiver
  • 2x Power Adapters
  • 1x User Instructions
Specifications:

Function VE811R VE811T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 ?
Max. Distance N/A 1.8 m
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 ? N/A
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)		 HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		 Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Connectors

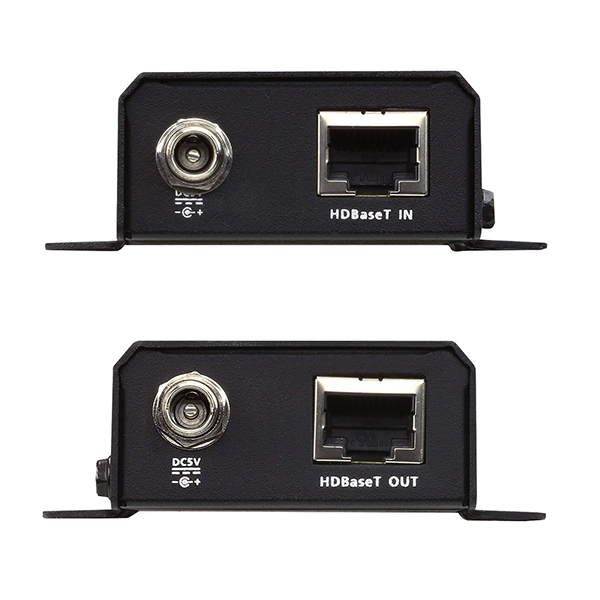

Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Firmware Upgrade 1 x Mini Stereo Jack Female (Black) 1 x Mini Stereo Jack Female (Black)
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Switches

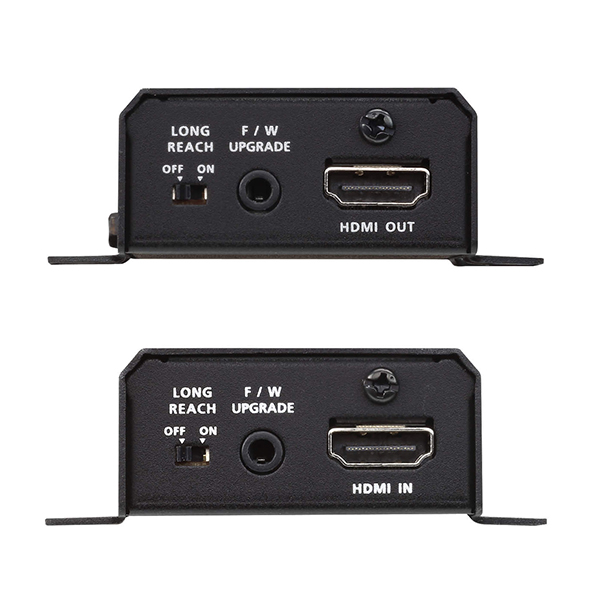

Long Reach Mode Switch 1 x Slide Switch - ON/OFF 1 x Slide Switch - ON/OFF
Power Consumption DC5V:3.77W:18 DC5V:3.84W:18
Environmental
Operating Temperature 0 - 40°C 0 - 40°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.17 kg ( 0.37 lb ) 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) with bracket 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)		 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket 8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)		 8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
