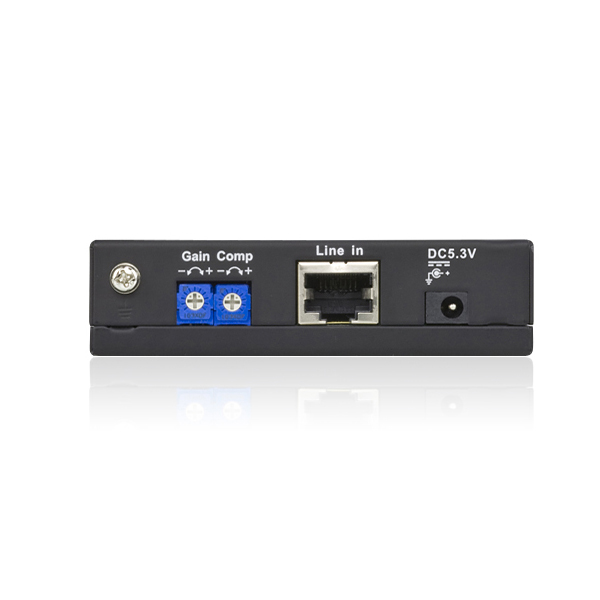

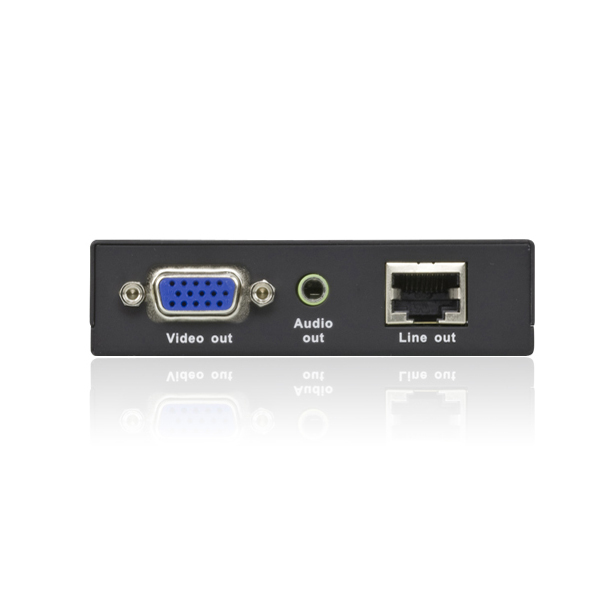

ATEN VE-172R A/V Over Cat 5 Receiver with Cascade
SKU: PJ10434
Model Name: VE-172R
Availability:
IN STOCK
Sale Price: $17.10 inc. GST
Quantity:

VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.

Compatible Transmitter Units:

VE170T A/V Over Cat 5 Transmitter
VS1204T A/V Over Cat 5 Transmitter
VS1208T A/V Over Cat 5 Transmitter

Compatible Receiver Units:
VE172R A/V Over Cat 5 Receiver with Cascade
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Cascadable up to 10 levels
  • Long distance transmission up to 150m
  • Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
  • Audio enabled (mono)
  • Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard

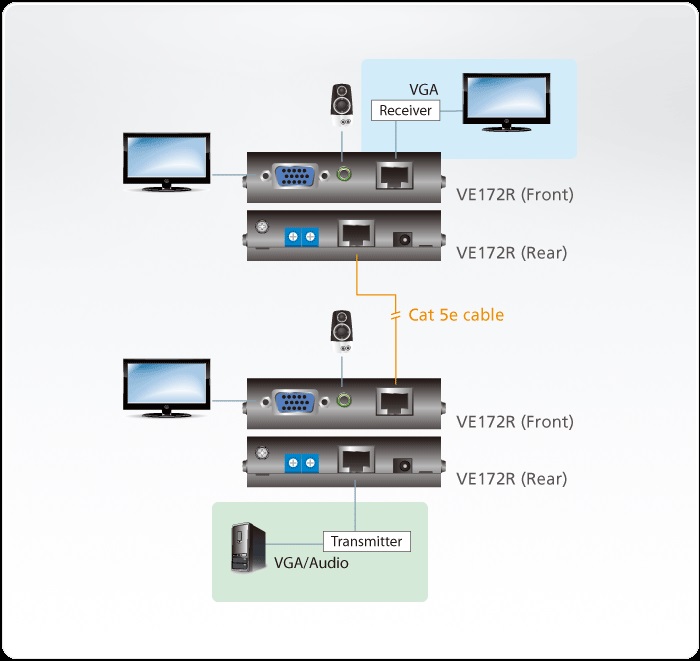

Diagram



Specifications;

Video Output Interface 1 x HDB-15 Female (Blue)
Impedance 75 ?
Video Max Bandwidth 300 MHz
Max Resolutions / Distance Up to 1920 x 1200@30m; 1280 x 1024@150m
Audio Output 1 x Mini Stereo Jack Female (Green)
Power Connector: 1 x DC Jack (Black)
Consumption: 5.3 VDC, 2.3W
Environment Operating Temp. 0-50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-Condensing
Physical
Properties		 Housing Metal
Weight 0.24 kg
Dimensions
(L x W x H)		 12.77 x 9.04 x 2.26 cm
Carton Lot 5 pcs
  • * The specification and pictures are subject to change without notice.
  • * All trademarks and logos are the properties of their respective holders.
