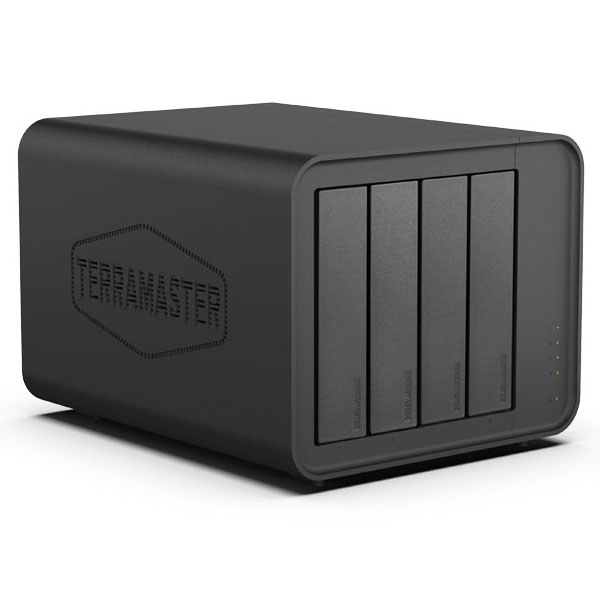

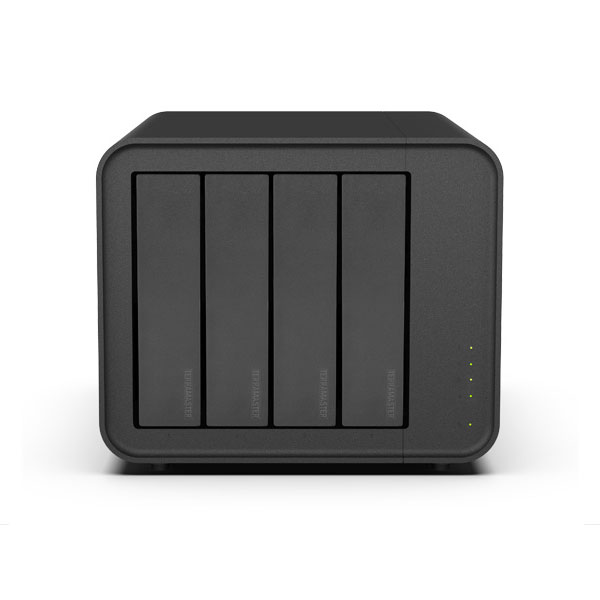

TerraMaster F4-424 Pro 4-Bay High Performance NAS For Business
SKU: PJ11904
Model Name: F4-424 Pro
Availability:
IN STOCK
Sale Price: $1099.00 inc. GST
Quantity:

Designed for High Performance Requirements
The 4-Bay F4-424 Pro is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load workflows, while multiple business-level backup solutions guarantee data safety and safeguard against the risk of data loss.

The Most Powerful 4-Bay NAS
The F4-424 Pro is the most powerful 4-bay NAS in the industry to date. It features the Intel Core i3 8-core 8-thread processor with a maximum turbo frequency of 3.8GHz, integrated Intel® UHD Graphics card with a maximum dynamic frequency of 1.25GHz, and supports AES NI hardware encryption. Equipped with 32GB DDR5 4800MHz memory, two 2.5G Ethernet ports, and built-in dual M.2 NVMe slots for SSD caching, it significantly boosts the storage efficiency of the disk array. This makes the F4-424 Pro an ideal high-performance storage solution for small and medium-sized business users engaged in virtualization and database applications.

Faster Application Response
Featuring a more powerful CPU and DDR5 memory, the F4-424 Pro represents a performance improvement of more than 150%onthe previous generation. Application load times have increased by 100%, file and photo retrieval speed by 45%, database response speed by 55%, and the PHP response for web pages has seen a remarkable 65%improvement. Such enhanced performance enables seamless handling of high-load workflows.

Higher Transmission Speed
The F4-424 Pro is configured with two 2.5 GbE interfaces, supporting a 2.5 GbE high-speed network bandwidth. The linear data transmission speed can reach 283 MB/s (Seagate IronWolf 18TB x 4, RAID 0). Link Aggregation offers a network bandwidth up to 5 Gb, thereby providing a cost-effective solution for multi-user and high-concurrent file access.

Powerful Multimedia Service
With 4K video decoding capability, the F4-424 Pro is compatible with uPnP/DLNA protocol and can stream videos to various multimedia devices, including computers, smart phones, media players and televisions, by using TerraMaster’s proprietary application Multimedia Server or the one from another third-party, to deliver users constant, reliable entertainment experiences.

Flexible Storage Configuration
The F4-424 Pro supports various RAID types including Single/RAID 0/1/5/6/10. It offers online capacity expansion and online migration for RAID types. Hot Spare can be configured for the disk array. It supports the creation of multiple storage spaces, and ext 4 or BTRFS file systems can be selected in accordance with various business requirements. When used in conjunction with TerraMaster USB DAS devices, the F4-424 Pro has the ability to flexibly expand storage capacity.

Professional Operating System
TNAS runs on TOS, a TerraMaster operating system developed based on Linux. Extensive research into the needs of various business users and the resultant continued evolution of multiple TOS generations has enabled it to integrate all-round professional storage management functions including network management, permission management, storage management, and resource monitoring via user-friendly, intuitive, and flat web interfaces. It also provides hundreds of free apps for the app market.

Across-Platform File Services
The ability of the F4-424 Pro to support most file services (SMB, AFP, SFTP/FTP, iSCSI, NFS, and WebDAV) enables it to successfully address the across-platform file service needs of different network environments. Moreover, the F4-424 Pro supports Windows AD domain and LDAP, thereby facilitating the incorporation of the existing IT environments of business users and improving management efficiency. The presence of permission management at the level of users, user groups, and file directories means that the F4-424 Pro can satisfy the comprehensive requirements of business users for inter-departmental collaboration and data security.

Rich Backup Solutions
TOS can protect valuable data using visual user interfaces and trustworthy storage solutions thanks to its integration with multiple backup applications that can address backup needs in an array of circumstances.
Centralized Backup: Backup for servers, virtual machines, employee PCs, and file servers can be initiated at the TNAS end, thus facilitating the rapid restoration of data after incidents.
Duple Backup: In order to provide several offsite backup versions, Duple Backup provides advanced data protection by backing up files to another remote TNAS, file server, or cloud drive.
Snapshot: It is possible to take continuous snapshots of your folders or iSCSI LUNs by enabling the snapshot schedule with the advanced storage technology and optimized snapshot technology available via the BTRFS file system. When problems arise, the system can roll back to points-in-time and restore to the last backup, thereby ensuring that your data is well protected.
CloudSync: This backs up or synchronizes TNAS data with the cloud drive, which not only improves the availability of cloud data, but also provides several offsite backup versions, thus safeguarding the security of your data.

Virtualized Applications
The F4-424 Pro satisfies virtualized application needs and provides additional functionality within one device with the use of professional virtualized apps, including VirtualBox and Docker, and by cooperating with Docker-compose and Portainer. This lowers the cost of corporate investment in IT.

Virtualized Applications
The F4-424 Pro satisfies virtualized application needs and provides additional functionality within one device with the use of professional virtualized apps, including VirtualBox and Docker, and by cooperating with Docker-compose and Portainer. This lowers the cost of corporate investment in IT.

Multiple Commercial Applications
TNAS allows business users to easily build file servers, mail servers, web servers, FTP servers, MySQL databases, CRM, Node.js, Java VMs, and many other services, thereby satisfying the commercial requirement of various SMBs in such fields as education, consulting, finance, scientific research, and law.

Easier Hard Disk Replacement
The F4-424 Pro is designed with a tool-free hard disk tray, removing the need for any tool during hard disk installation. The F4-424 Pro also features TerraMaster's unique Push-Lock design, which automatically locks the hard disk on insertion to prevent it from coming loose or going offline. As a result, it is extremely convenient for users who need to replace hard disks frequently for data exchange, as their installation takes less than 10 seconds.

Easy Installation of M.2 SSD
To facilitate the installation of M.2 SSDs, TerraMaster has specially designed a side sliding cover for the F4-424 Pro chassis, which is simply pushed aside to install M.2 SSDs. TerraMaster also provides hand-tightened screws, making it easy to install an SSD within 5 seconds.

Better Heat Dissipation
The F4-424 Pro features an intelligent temperature-controlled fan, which ensures optimal working conditions by automatically adjusting fan speed according to hard disk temperature. It also has a dedicated ventilation channel for M.2 SSDs to accommodate hybrid storage applications. Even under full load, the temperature of anyM.2 SSDs can be kept within a reasonable range.

Less Noise
The unit’s close placement to the user has required a design that achieves greatly reduced noise to meet the strict requirements for these levels in desktop products. The high-speed rotation of disks and heads in HDDs when reading and writing produces vibrations with noticeable noise. These vibrations may resonate with the product's cavity and amplify the overall noise. To combat this, besides incorporating additional shock-absorbing measures, TerraMaster’s engineers have designed numerous special sound-absorbing panels in the new structure to minimize noise. Testing has shown that the new generation of products achieve noise levels 50% lower than the previous generation’s, with a noise level in standby mode of only 21dB(A)!

Test conditions: Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m

Worry-free After-sales-service
TerraMaster implements its unique after-sales-service policy that “provides replacements within 2 years” and offers worry-free quality assurance through real-time online customer service, a professional technical forum, an online user guide, a technical service mailbox, and remote troubleshooting.

Processor
Processor Model Intel® Core™ i3-N305
Processor Architecture X.86 64-bit
Processor Frequency Max burst up to 3.8 GHz
CPU Single-Core Score /
Hardware Encryption Engine
Hardware Transcoding Engine  H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
Memory
System Memory 32 GB DDR5 non-ECC SODIMM
Pre-installed Memory module 32 GB DDR5 non-ECC SODIMM (1x 32 GB)
Total Memory Slot Number 1 (DDR5 SODIMM)
Maximum Supported Memory 32 GB DDR5 non-ECC SODIMM
Note TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Disk Slot Number 4
Compatible Drive types 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Storage Capacity 88 TB (22 TB x4) (Capacity may vary by RAID types)
Drive Hot Swap
Note  . Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly.
. The maximum single volume size is not directly related to the maximum raw capacity.
File System
Internal Drive Btrfs, EXT4
External Drive EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS

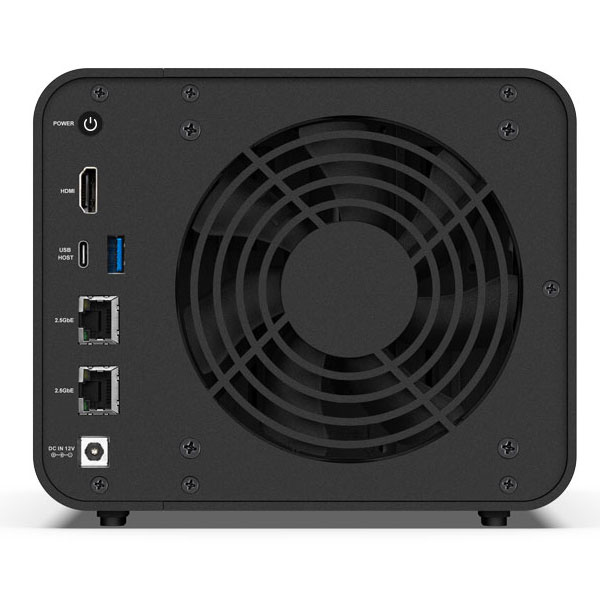

External Ports
RJ-45 1GbE Network Jack /
RJ-45 2.5GbE Network Jack 2
RJ-45 10GbE Network Jack /
 SFP+ 10GbE Network Jack /
USB3.2 Host Port 2(10Gbps)
USB2.0 Host Port /
COM /
HDMI 1(HDMI 2.1)
VGA /
PCIe Slots /
M.2 2280 NVMe Slot
Appearance
Size (H*W*D) 222 x 179 x 154 mm
Packaging Size (H*W*D) 300 x 275 x 186  mm
Weight 3.4 kg
Others
System Fan 120 x 120 x 25mm  1PCS
Fan Mode Smart, High speed, Middle speed, Low speed
Noise Level 21.0 dB(A) (Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)
Power Supply 90W
Redundancy Power Supply /
AC Input Voltage 100V - 240V AC
Current Frequency 50/60 Hz, Single frequency
Power Consumption 33.0 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)
13.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
Limited warranty 2 years
Certificate FCC, CE, CCC, KC
Environment RoHS, WEEE
Temperature
Working Temperature 0°C  ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
Package Contents
  Host unit (x1)
Power cord (x1)
Power Adapter(x1)
RJ-45 network cable (x1)
Quick Installation Guide (x1)
Limited Warranty Note(x1)
Screws(a few)
TOS Features
OS Supported
Supported Client OS Windows OS, Mac OS, Linux OS
Supported Web Browsers Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version.
Supported mobile OS iOS14.0, Android 10.0 or later version
Storage Management
Supported RAID Types TRAID, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10
Maximum Internal Volume Number 256
Maximum iSCSI Target 128
Maximum iSCSI LUN 256
Volume Expansion with Larger HDDs TRAID, RAID 1,RAID5,RAID 6,RAID10
Volume Expansion by Adding a HDD TRAID, RAID5,RAID6
RAID Migration
SSD Cache
Hot Spare
SSD TRIM
Hard Drive S.M.A.R.T.
Seagate IHM
NVRAM write cache(BBU-protected) /
Shared Folder Snapshot
LUN Snapshot /
File Services
File Protocol SMB/AFP/NFS/FTP/SFTP/WebDAV
Maximum Concurrent SMB/AFP/FTP/SFTP Connections 512
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum local user's account number 2048
Maximum local group number 512
Maximum shared folders number 512
Maximum shared folders syncing tasks 8
Backup
Rsync Backup
Duple Backup
Centralized Backup
Snapshot
USB  Backup
Cloud Sync
Time Machine Backup
File System Snapshot
TFM Backup
Networking
TCP/IP IPv4/IPv6
Protocols CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP
Link Aggregation
DLNA Compliance
VPN Client
VPN Server
Proxy Client
Proxy Server /
UPnP/Bonjour Discovery
TNAS.online Remote Access
DDNS
Access Right Management
Batch users creation /
Import/Export users
User Quota Managerment
Local user access control for CIFS/SAMBA and FTP
Domain Authentication
AD Domain
LDAP Client
LDAP Server /
Security
Firewall Protection
Account Auto-block Protection
AES Volume and Shared Folder Encryption
Importable SSL certificate
Instant Alert via email, Desktop Notification, Beep
RSA 2048 Encryption(TOS 5.0) √
PAM (Pluggable Authentication Modules)
OTP Authentication(TOS 5.0)
HyperLock File System(TOS 5.0)
Power Managerment
Power Resume
Scheduled Power On/Off
Wake up On LAN(WOL)
UPS Supported
Administration
Multi-window, Multi-task System Management
Custom Desktop
Control Panel
Resource Monitor
Syslog
OS UI Language English,German, French, Spanish, Italian, Magyar, Chinese,Japanese,Korean,Turkish, Portuguese, Russian
Applications
Application Center
iSCSI Target
Terra Photos
TerraSync
Duple Backup
CloudSync
Centralized Backup
USB Backup
VPN Server
Transmission
qBittorent
Aria 2
Terra Search
Deduplication
Web Server
Clam Antivirus
EMBY
Multi Media Server
Plex Media Server
Docker Manager
Snapshot
