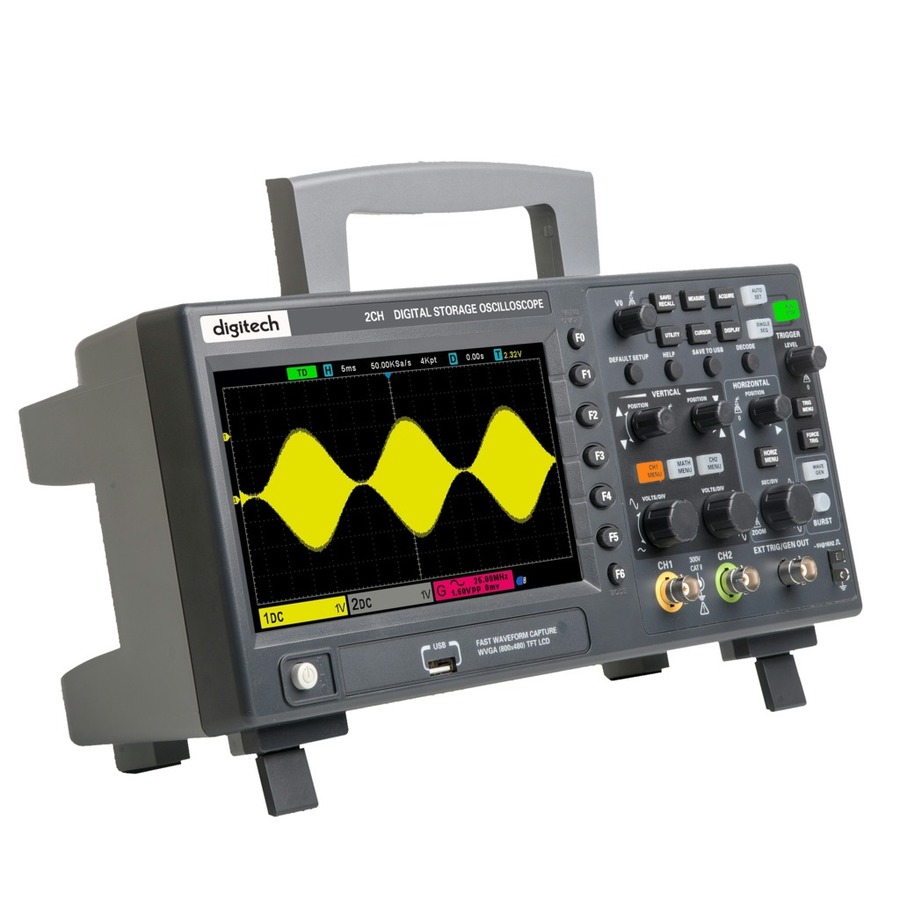

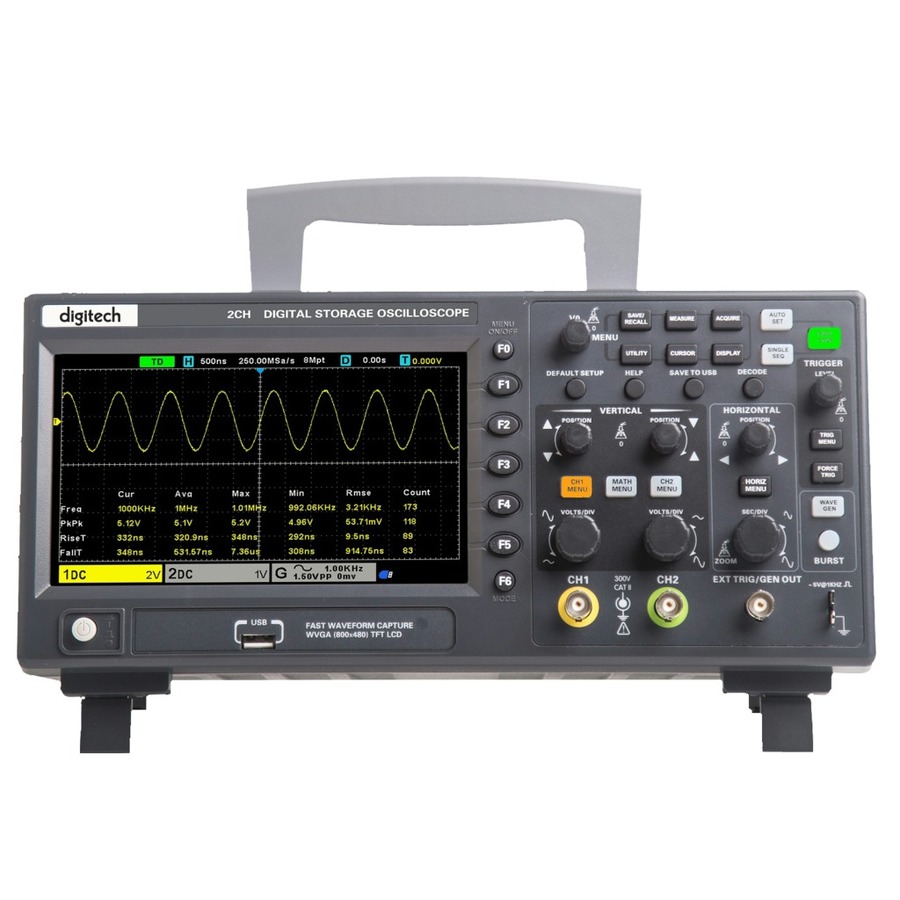

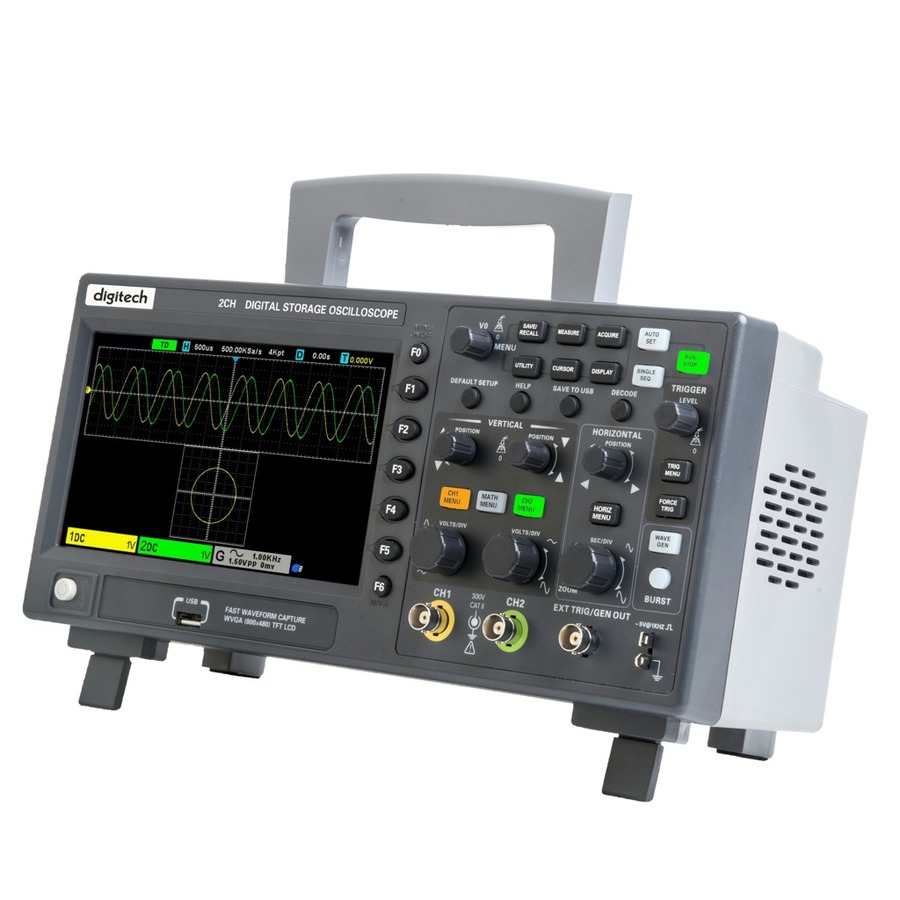

Digitech 100MHz Digital Oscilloscope with 8M Memory Depth
|
Make designing or repairing electronics easier with this affordable dual channel digital oscilloscope. Features include 7” colour LCD screen with easy to use interface. two independent channels and controls, 100Mhz bandwidth & 25MHz waveform generator, and an auto scale function that detects sine and square waves automatically. 14 trigger modes include Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, and IIC, and 5 serial protocol triggers and decodes include RS232/UART, I2C, SPI, CAN, and LIN. Other features include two 3-digit digital voltmeters, and 6-digit hardware frequency indicator. It also boasts 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation, etc. Connect and control directly from a computer, or plug in a USB thumb drive to save oscilloscope setups, waveforms, reference waveforms, CSV files and images. Mains powered. Supplied with 10:1 passive probe with 1.5m lead, 2 x BNC to clip test leads, USB cable, and power lead.
Features:
1. Power button
2. Bracket
3. USB interface
4. Menu selection key
5. Vertical control system
6. CH1, CH2 Input Channel for signal
7. Horizontal control system
8. Signal source output (only valid for model with function generator) /external trigger input channel
9. Probe compensation function zone
10. Signal source (only valid for model with function generator)
11. Trigger control system
12. Operation mode hot key (Run/Stop, Single SEQ, Auto Set)
13. Menu Function Button
14. Multifunctional Knob
15. Function hot key
16. Menu display/hide key
Specifications:
