StarTech USB3DDOCKFT KVM Docking Station for Two Laptops - Share Keyboard, Mouse, Dual Monitors, and Files - USB 3.0
|
||||||||||||

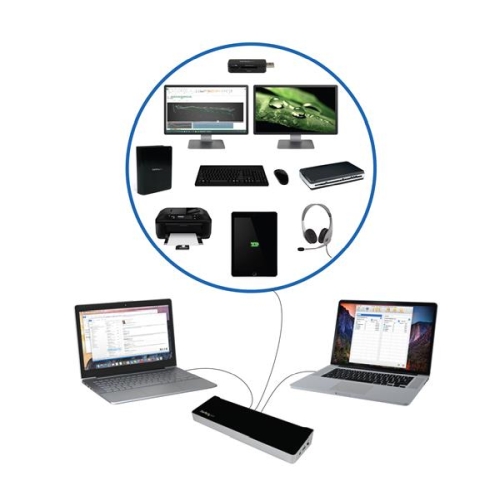

This KVM docking station for two laptops is the first of its kind. It functions similar to a KVM switch, letting you share your keyboard, video, and mouse between two computers.
Plus, it provides dual-monitor outputs, so you can add two extra displays to your workstation, and then share them with each laptop.
This dock eliminates the frustrations of working with multiple computers. You can save money and desk space by using the same peripheral set with each computer, plus you can easily transfer files between your two laptops. It’s a simple yet ultra-efficient method for working with more than one laptop.
The dual-monitor KVM dock supports Windows or Mac laptops, or a combination of both. And for a faster workflow and additional convenience, this specialty docking station lets you share and exchange data between your two computers.
It's perfect for a range of users such as professionals and office workers with multiple laptops, students, and IT technicians. It’s ideal for collaboration in classrooms, labs, and boardrooms, as well as many other specialized applications.
This cutting-edge docking station is designed for users with multiple laptops or Windows based tablets. Like a KVM switch, it lets you share your peripherals between two computers, with the added benefit of offering extra monitor connections. With shared docking you can get more work done in less time and avoid the nuisance of plugging and unplugging your laptops while you’re using them both at your workstation.
When you’re in a hurry, switching control to either computer is effortless using the switch button that’s conveniently located on the side of the dock.
You can create a dual-monitor workstation that connects with two laptops if you have DisplayPort™ and HDMI displays, making it easy to display applications or browsers from either laptop. Alternatively the dock supports a single 4K DP monitor, for 4K x 2K (3840 x 2160p - 30Hz) cinema-quality resolution and vivid picture quality.
Maximum Supported Resolutions*
Technical Specifications:| Video Output Configuration | Max DisplayPort Resolution | Max HDMI Resolution |
|---|---|---|
| DisplayPort and HDMI (Two Displays) |
2048 x 1152p | 2048 x 1152p |
| DisplayPort (Single Display) |
3840 x 2160p (4K) | N/A |
| HDMI (Single Display) |
N/A | 2560 x 1440p |
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
In addition to connecting two laptops, this full-featured KVM dock lets you connect up to nine peripherals, and provides all the ports you need. And, with five USB 3.0 ports you can connect more USB devices than most docking stations allow. Plus, every port can be easily shared between each connected laptop.
It’s easy to charge your mobile device quickly using the always-on fast-charge port. With several USB 3.0 ports, Gigabit Ethernet, and a headset jack, you can connect multiple peripherals and control them from either laptop.
Unlike some docks, this easy-to-use docking station offers seamless, error-free driver installation which makes it easy to create a dynamic and high-performance workstation.
For an uninterrupted workflow and streamlined convenience this dock integrates file sharing capabilities. Laptop-to-laptop file sharing is faster, more secure, and easier to use than cloud or external storage solutions, plus, you can skip the aggravation of configuring your network to support file sharing.
Using Windows Easy Transfer, or the included PCLinq software, you can easily create files and presentations on your primary laptop, and quickly transfer them to your portable Ultrabook™, MacBook, or tablet. Plus, with two laptops connected to just one dock, the file sharing dock makes it easy to collaborate with colleagues or classmates.
The built-in file transfer software is easy to use and data transfers are lightning quick, using USB 3.0 technology. (USB 3.0 is also known as USB 3.1 Gen 1 - 5Gbps.)
The unique file exchange technology creates endless application possibilities, and the dock especially caters to developers, as well as network and systems administrators.
Unlike some proprietary docking stations designed only to work with specific laptop models, this universal laptop dock works with multiple brands. All you need is your laptop’s USB 3.0 port and you can be up and running quickly. With universal support, you can use this dock with different laptops now, or in the future.
The USB3DDOCKFT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: PCLinq can be used in any operating system that the dock supports. Windows Easy Transfer can only be used in Windows 8.1, 8, and 7.
The ability to use both Mac and Windows laptops together is another great bonus that will go over especially well in mixed-platform homes and businesses.
Jim Tanous
TekRevue
PUBLICATION DATE: OCTOBER 08 2015
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| 4K Support | Yes |
| Bus Type | USB 3.0 |
| Chipset ID | DisplayLink - DL-5900 (Display, LAN, Audio) VLI - VL812 (USB 3.0 w/ Charge) |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz (DisplayPort - Single Display) 2560 x 1440 (HDMI - Single Display) 2048 x 1152 and 2048 x 1152 (DisplayPort and HDMI - Two Displays) Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p. |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |

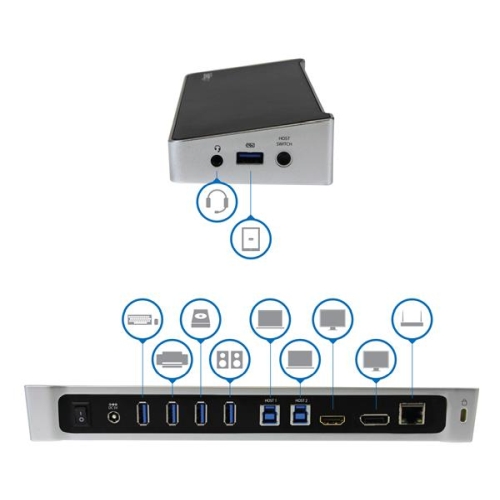

| Connector(s) | |
| Connector Type(s) | 1 - DisplayPort (20 pin) Female |
| 1 - HDMI (19 pin) Female | |
| 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | |
| 4 - USB Type-A (9 pin) USB 3.0 Female | |
| 1 - RJ-45 Female | |
| 1 - 3.5 mm Mini-Jack (4 Position) Female | |
| 2 - USB Type-B (9 pin) USB 3.0 Female | |
| 1 - Security Lock Slot Female | |
| Software | |
| OS Compatibility | Windows 7, 8, 8.1, 10 Mac OS 10.8 to 10.12 |
| Special Notes / Requirements | |
| Note | A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions |
| If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cables included) | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps | |
| PCLinq can be used in any operating system that the dock supports. Windows Easy Transfer can only be used in Windows 8.1, 8, and 7 | |
| System and Cable Requirements | Two USB-enabled computers with an available USB 3.0 port on each computer (host) |
| Indicators | |
| LED Indicators | 1 - Link (Green) |
| 1 - Activity (Amber) | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 6.5 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption | 32.5 W Max |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Physical Characteristics | |
| Color | Black & Silver |
| Enclosure Type | Plastic |
| Product Height | 1.3 in [34 mm] |
| Product Length | 10.6 in [270 mm] |
| Product Weight | 13.1 oz [372 g] |
| Product Width | 3.2 in [82 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 2.5 lb [1.1 kg] |

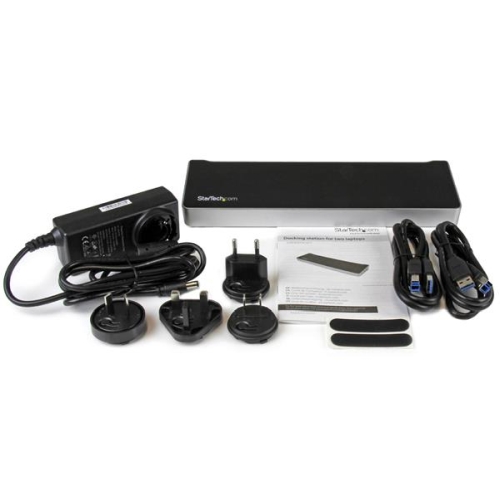

| What's in the Box | |
| Included in Package | 1 - laptop docking station |
| 2 - USB 3.0 host cables | |
| 1 - universal power adapter (NA/EU/UK/AU) | |
| 1 - instruction manual | |
