StarTech NOTECONS02 KVM Console to Laptop USB 2.0 Portable Crash Cart Adapter with File Transfer & Video Capture
|
||||||||||||

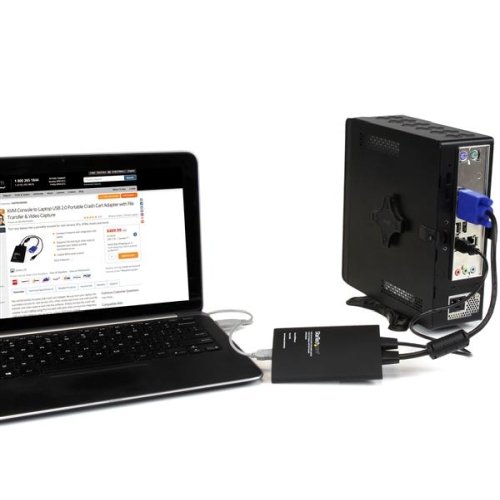

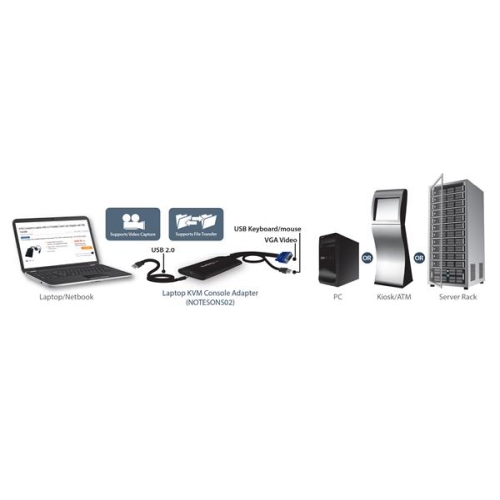

The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.

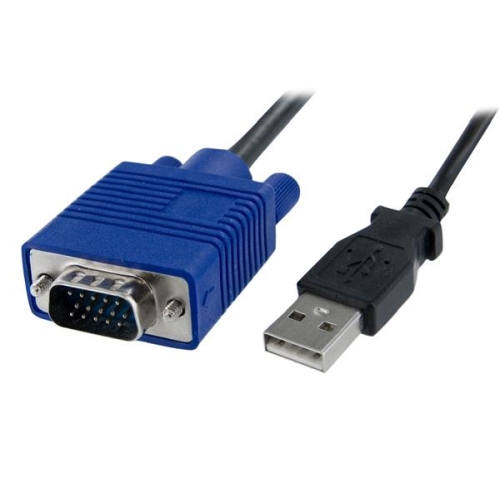

Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.
Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.
With no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.
Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.
With portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.
Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.
StarTech's USB 2.0 Crash Cart Adapter is one of the best KVM solutions I have used to date. The ability to plug into any PC and have full BIOS and operating system control, including file transfer capabilities makes this one product every IT guy can use.
Bottom Line: 86%
Tyler Bernath
PUBLICATION DATE: DECEMBER 24 2014
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 1 |
| Multi-Monitor | No |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 909000 |
| Connector(s) | |
| Console Interface(s) | 1 - USB Mini-B (5 pin) Female Input |
| Host Connectors | 1 - USB A (4 pin) Male |
| 1 - VGA (15 pin; High Density D-Sub) Male | |
| Software | |
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2 Mac OS X 10.9 to 10.11 Linux 2.6 to 4.4 LTS versions only |
| Indicators | |
| LED Indicators | 1 - Host/Server Keyboard/Mouse USB Link |
| 1 - Host/Server Video (VGA) Link | |
| 1 - User Console/USB Link | |
| Power | |
| Power Source | USB-Powered |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Physical Characteristics | |
| Cable Length | 16.4 in [416 mm] |
| 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Depth | 4.5 in [115 mm] |
| Product Height | 0.6 in [15 mm] |
| Product Weight | 6 oz [170 g] |
| Product Width | 2.9 in [74 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 12.8 oz [363 g] |
| What's in the Box | |
| Included in Package | 1 - USB Crash Cart Adpater |
| 1 - USB A to Mini-B Cable | |
| 1 - USB Software Key | |
